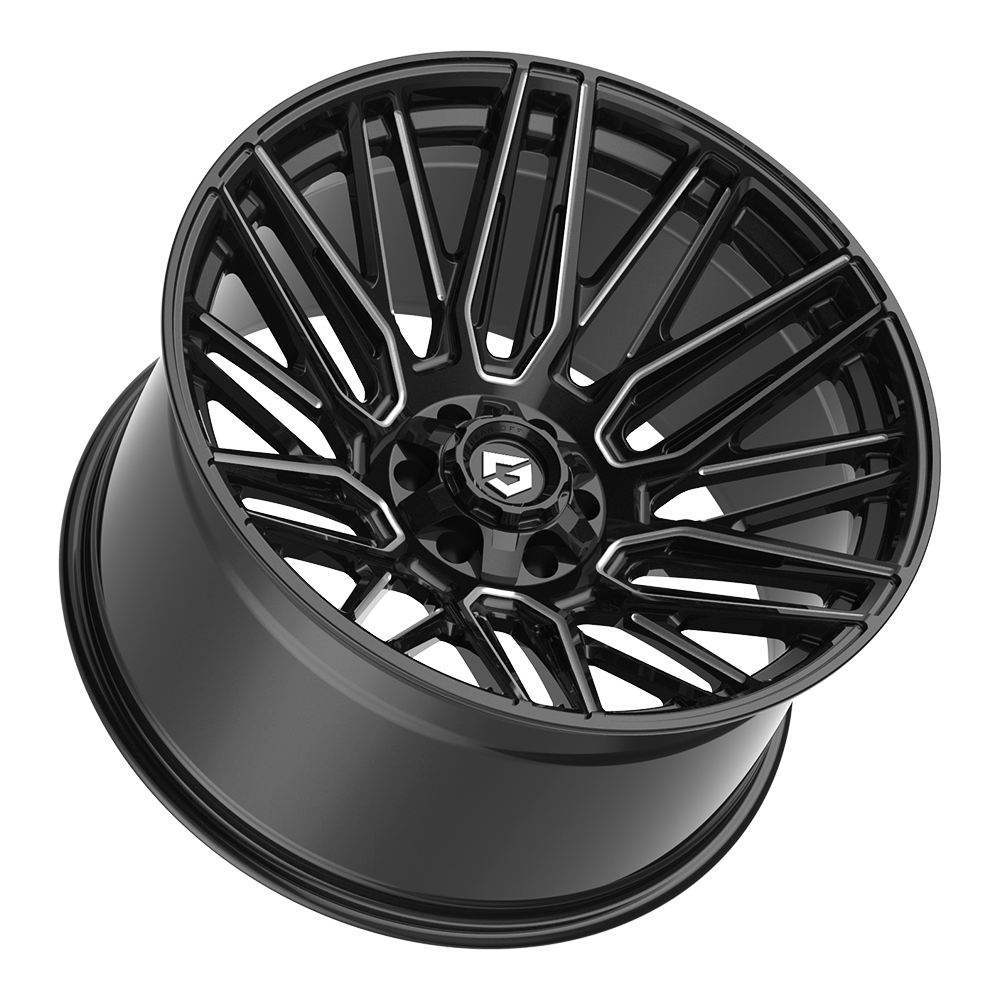

770 EDGE

GLOSS BLACK MILLED (BM)

DIAMETERS

BOLT PATTERNS

5x150
5x5.00
5x5.50
6x135
6x5.50
8x170
8x180
8x6.50

FIND A DEALER

770 EDGE

GLOSS BLACK (B)

DIAMETERS

BOLT PATTERNS

5x150
5x5.00
5x5.50
6x135
6x5.50
8x170
8x180
8x6.50

FIND A DEALER

770 EDGE

BRUSHED SILVER (BS)

DIAMETERS

BOLT PATTERNS

5x150
5x5.00
5x5.50
6x135
6x5.50
8x170
8x180
8x6.50

FIND A DEALER

U.S. PATENT PENDING

KEY FEATURES:

• Exceptionally Strong A356 Aluminum Alloy
• T6 Heat Treated for Maximum Strength
• Multi-leveled mesh design with deep concavity
• Available in Premium Finishes with Gloss Clear Coat for Added Protection
• Pop-In Center Cap with Signature Gear Off Road Logo
• Industry-Leading 2500 lb. to 3700 lb. Load Ratings
• Lifetime Structural Warranty & 1 Year Finish Warranty

OVERVIEW:

Starting from the lip and tracing down to the center portion of the wheel, the 770 Edge was designed with the intent to create a cutting-edge mesh design focused on deep concavity. The multi-leveled mesh design creates another layer of dimension. When looking closer at the details, the Edge has pocketed detailing for weight saving and to add the finishing touch to the design.

* Vehicles equipped with high-capacity axle options will require cap spacers to clear the cap (Applies to Ford Super Duty trucks only). Contact us for more info.

OPTIONAL FLOATING CAP:

DIAMETER OPTIONS

20x9

20x10

22x10

SPECIFICATIONS

Part number	Wheel size	Bolt pattern	Offset (MM)	Back Spacing	Hub bore (MM)	Load Rating	Cap	Lip Depth
770B-2096818	20X9	6X135/6X5.50	18	5.71	106.2	2500	CAP-6H-BB24	N/A
770B-2098118	20X9	8X6.50	18	5.71	125.2	3700	CAP-8L2-BB21	N/A
770B-2098718	20X9	8X170	18	5.71	125.2	3700	CAP-8L2-BB21	N/A
770B-2098918	20X9	8X180	18	5.71	124.3	3700	CAP-8L2-BB21	N/A
770B-2106819	20X10	6X135/6X5.50	-19	4.75	106.2	2500	CAP-6H-BB24	N/A
770B-2108119	20X10	8X6.50	-19	4.75	125.2	3700	CAP-8L2-BB21	N/A
770B-2108719	20X10	8X170	-19	4.75	125.2	3700	CAP-8L2-BB21	N/A
770B-2108919	20X10	8X180	-19	4.75	124.3	3700	CAP-8L2-BB21	N/A
770B-2206810	22X10	6X135/6X5.50	10	5.89	106.2	2500	CAP-6H-BB24	N/A
770B-2206819	22X10	6X135/6X5.50	-19	4.75	106.2	2500	CAP-6H-BB24	N/A
770B-2208119	22X10	8X6.50	-19	4.75	125.2	3700	CAP-8L2-BB21	N/A
770B-2208719	22X10	8X170	-19	4.75	125.2	3700	CAP-8L2-BB21	N/A
770B-2208919	22X10	8X180	-19	4.75	124.3	3700	CAP-8L2-BB21	N/A
770B-2220944	22x12	5x5.00/5x5.50	-44	4.77	78.1	2500	CAP-5-BB24	N/A
770B-2225244	22x12	5x5.50/5x150	-44	4.77	110.2	2500	CAP-5H-BB24	N/A
770B-2226844	22x12	6x135/6x5.50	-44	4.77	106.2	3700	CAP-6H-BB24	N/A
770B-2228144	22x12	8x6.50	-44	4.77	125.2	3700	CAP-8L2-BB21	N/A
770B-2228744	22x12	8x170	-44	4.77	125.2	3700	CAP-8L2-BB21	N/A
770B-2228944	22x12	8x180	-44	4.77	124.3	3700	CAP-8L2-BB21	N/A
770B-7900900	17x9	5x5.00/5x5.50	0	5	78.1	2500	CAP-5-BB24	N/A
770B-7906800	17x9	6x135/6x5.50	0	5	106.2	3700	CAP-6H-BB24	N/A
770B-7906818	17x9	6x135/6x5.50	18	5.71	106.2	3700	CAP-6H-BB24	N/A
770B-8900900	18x9	5x5.00/5x5.50	0	5	78.1	2500	CAP-5-BB24	N/A
770B-8906800	18x9	6x135/6x5.50	0	5	106.2	3700	CAP-6H-BB24	N/A
770B-8906818	18x9	6x135/6x5.50	18	5.71	106.2	3700	CAP-6H-BB24	N/A
770BM-2096818	20X9	6X135/6X5.50	18	5.71	106.2	2500	CAP-6H-B24	N/A
770BM-2098118	20X9	8X6.50	18	5.71	125.2	3700	CAP-8L2-B21	N/A
770BM-2098718	20X9	8X170	18	5.71	125.2	3700	CAP-8L2-B21	N/A
770BM-2098918	20X9	8X180	18	5.71	124.3	3700	CAP-8L2-B21	N/A
770BM-2106819	20X10	6X135/6X5.50	-19	4.75	106.2	2500	CAP-6H-B24	N/A
770BM-2108119	20X10	8X6.50	-19	4.75	125.2	3700	CAP-8L2-B21	N/A
770BM-2108719	20X10	8X170	-19	4.75	125.2	3700	CAP-8L2-B21	N/A
770BM-2108919	20X10	8X180	-19	4.75	124.3	3700	CAP-8L2-B21	N/A
770BM-2206810	22X10	6X135/6X5.50	10	5.89	106.2	2500	CAP-6H-B24	N/A
770BM-2206819	22X10	6X135/6X5.50	-19	4.75	106.2	2500	CAP-6H-B24	N/A
770BM-2208119	22X10	8X6.50	-19	4.75	125.2	3700	CAP-8L2-B21	N/A
770BM-2208719	22X10	8X170	-19	4.75	125.2	3700	CAP-8L2-B21	N/A
770BM-2208919	22X10	8X180	-19	4.75	124.3	3700	CAP-8L2-B21	N/A
770BM-2220944	22x12	5x5.00/5x5.50	-44	4.77	78.1	2500	CAP-5-B24	N/A
770BM-2225244	22x12	5x5.50/5x150	-44	4.77	110.2	2500	CAP-5H-B24	N/A
770BM-2226844	22x12	6x135/6x5.50	-44	4.77	106.2	3700	CAP-6H-B24	N/A
770BM-2228144	22x12	8x6.50	-44	4.77	125.2	3700	CAP-8L2-B21	N/A
770BM-2228744	22x12	8x170	-44	4.77	125.2	3700	CAP-8L2-B21	N/A
770BM-2228944	22x12	8x180	-44	4.77	124.3	3700	CAP-8L2-B21	N/A
770BM-7900900	17x9	5x5.00/5x5.50	0	5	78.1	2500	CAP-5-B24	N/A
770BM-7906800	17x9	6x135/6x5.50	0	5	106.2	3700	CAP-6H-B24	N/A
770BM-7906818	17x9	6x135/6x5.50	18	5.71	106.2	3700	CAP-6H-B24	N/A
770BM-8900900	18x9	5x5.00/5x5.50	0	5	78.1	2500	CAP-5-B24	N/A
770BM-8906800	18x9	6x135/6x5.50	0	5	106.2	3700	CAP-6H-B24	N/A
770BM-8906818	18x9	6x135/6x5.50	18	5.71	106.2	3700	CAP-6H-B24	N/A
770BS-2096818	20X9	6x135/6x5.50	18	5.71	106.2	2500	CAP-6H-SC24	N/A
770BS-2098118	20X9	8x6.50	18	5.71	125.2	3700	CAP-8L2-SC21	N/A
770BS-2098718	20X9	8x170	18	5.71	125.2	3700	CAP-8L2-SC21	N/A
770BS-2098918	20X9	8x180	18	5.71	124.3	3700	CAP-8L2-SC21	N/A
770BS-2106819	20X10	6x135/6x5.50	-19	4.75	106.2	2500	CAP-6H-SC24	N/A
770BS-2108119	20X10	8x6.50	-19	4.75	125.2	3700	CAP-8L2-SC21	N/A
770BS-2108719	20X10	8x170	-19	4.75	125.2	3700	CAP-8L2-SC21	N/A
770BS-2108919	20X10	8x180	-19	4.75	124.3	3700	CAP-8L2-SC21	N/A
770BS-2206810	22x10	6x135/6x5.50	10	5.89	106.2	2500	CAP-6H-SC24	N/A
770BS-2206819	22x10	6x135/6x5.50	-19	4.75	106.2	2500	CAP-6H-SC24	N/A
770BS-2208119	22x10	8x6.50	-19	4.75	125.2	3700	CAP-8L2-SC21	N/A
770BS-2208719	22x10	8x170	-19	4.75	125.2	3700	CAP-8L2-SC21	N/A
770BS-2208919	22x10	8x180	-19	4.75	124.3	3700	CAP-8L2-SC21	N/A
770BS-2226844	22x12	6x135/6x5.50	-44	4.77	106.2	3700	CAP-6H-SC24	N/A
770BS-2228144	22x12	8x6.50	-44	4.77	125.2	3700	CAP-8L2-SC21	N/A
770BS-2228744	22x12	8x170	-44	4.77	125.2	3700	CAP-8L2-SC21	N/A
770BS-2228944	22x12	8x180	-44	4.77	124.3	3700	CAP-8L2-SC21	N/A
