764 – LEVERAGE

U.S. PATENT PENDING

STARTING FROM (PER WHEEL)
$344 $375
DIAMETERS:
  • 20"
  • 22"
BOLT PATTERNS:
  • 5x135
  • 5x5.00
  • 5x5.50
  • 6x135
  • 6x5.50
  • 8x170
  • 8x180
  • 8x6.50
FINISHES:
  • 18
    (BM)
  • 121
    (C)
KEY FEATURES:

• Exceptionally Strong A356 Aluminum Alloy
• T6 Heat Treated for Maximum Strength
• Bolt-on Center Cap with Signature Gear Off Road Logo
• Dual Channel Spoke Design
• Deep Lip with Milled “Gear Off Road” Name
• Available in Premium Finish with Gloss Clear Coat & Chrome for Added Protection
• TPMS Compatible
• Industry-Leading 2500 lb. to 3700 lb. Load Ratings
• Lifetime Structural Warranty & 1 Year Finish Warranty

OVERVIEW:

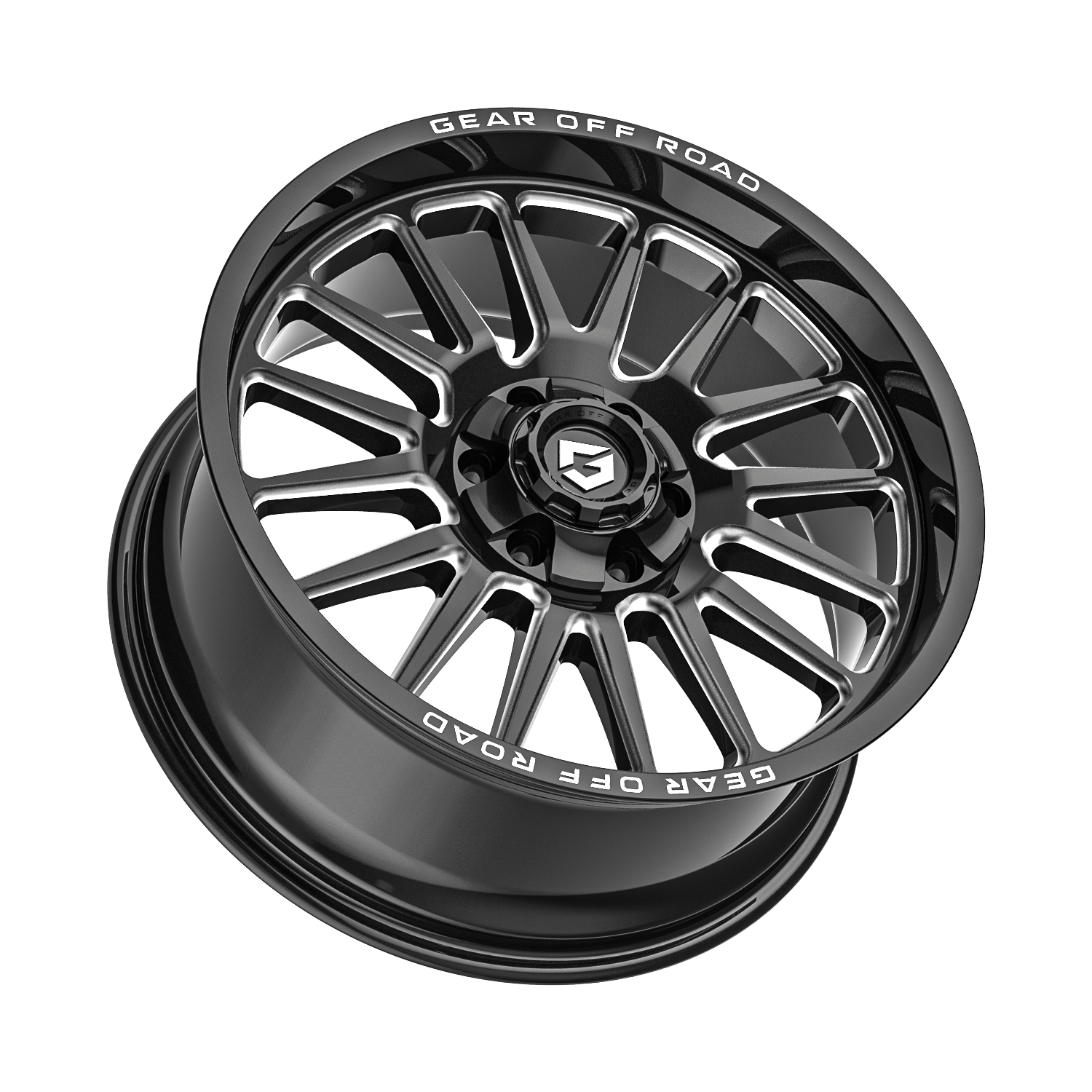

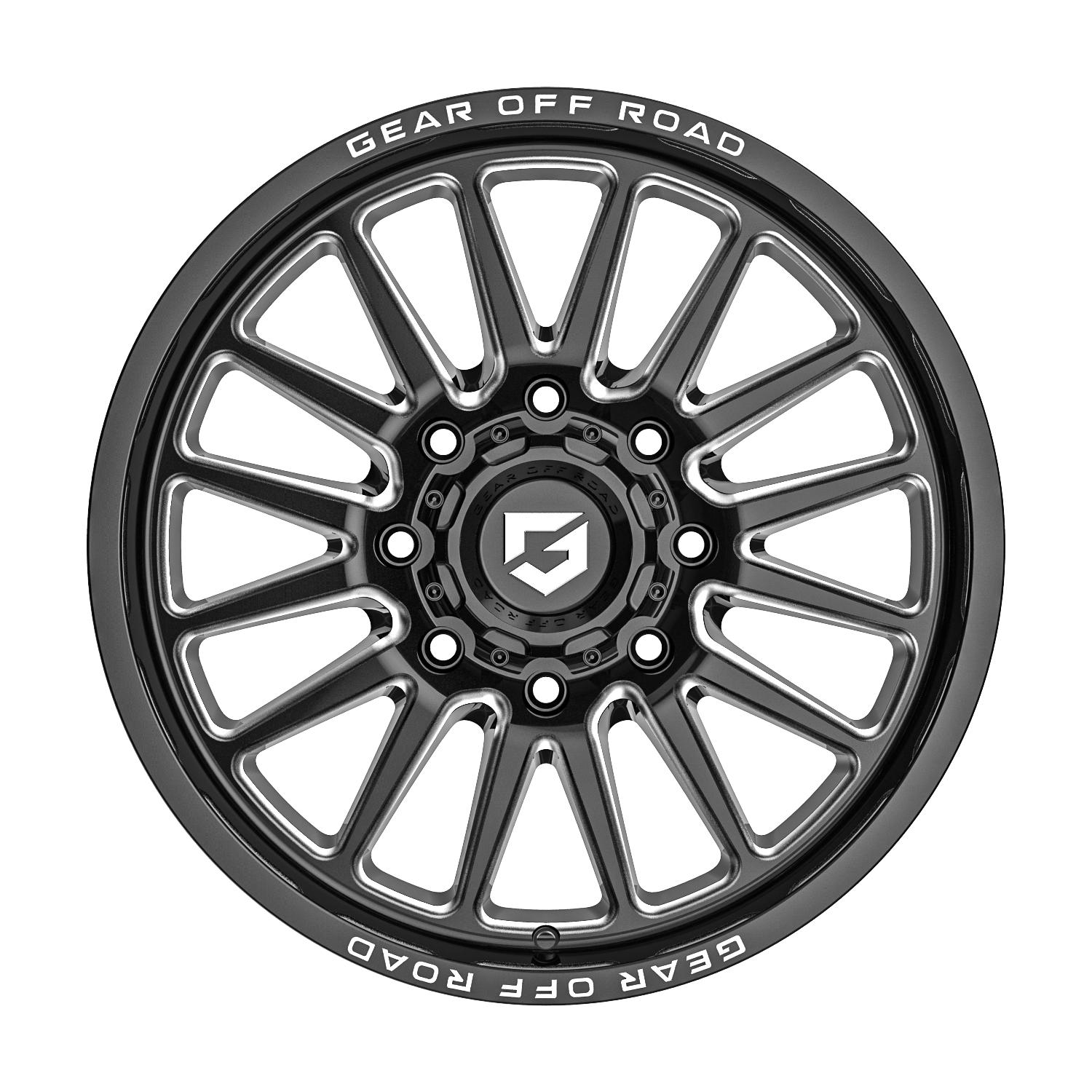

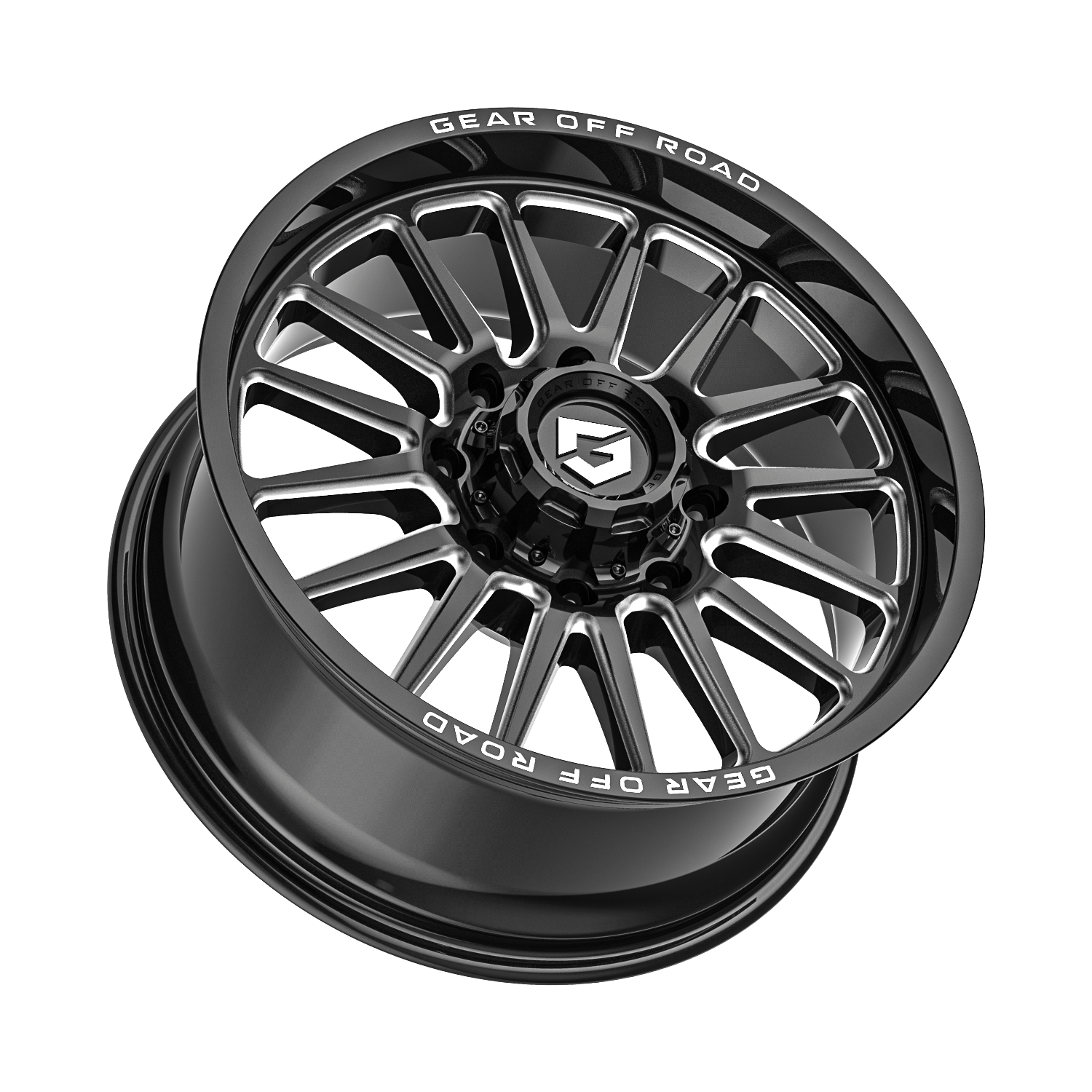

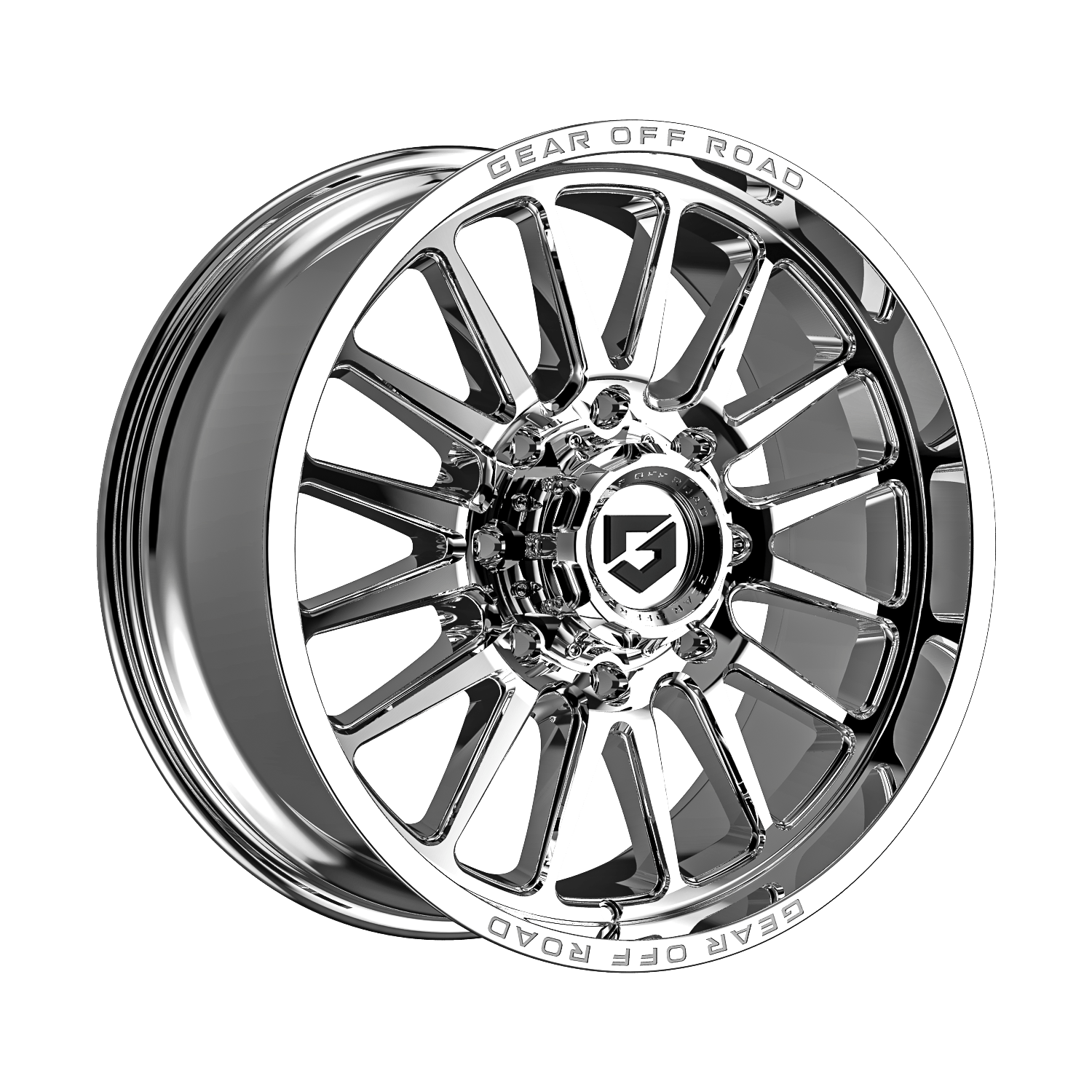

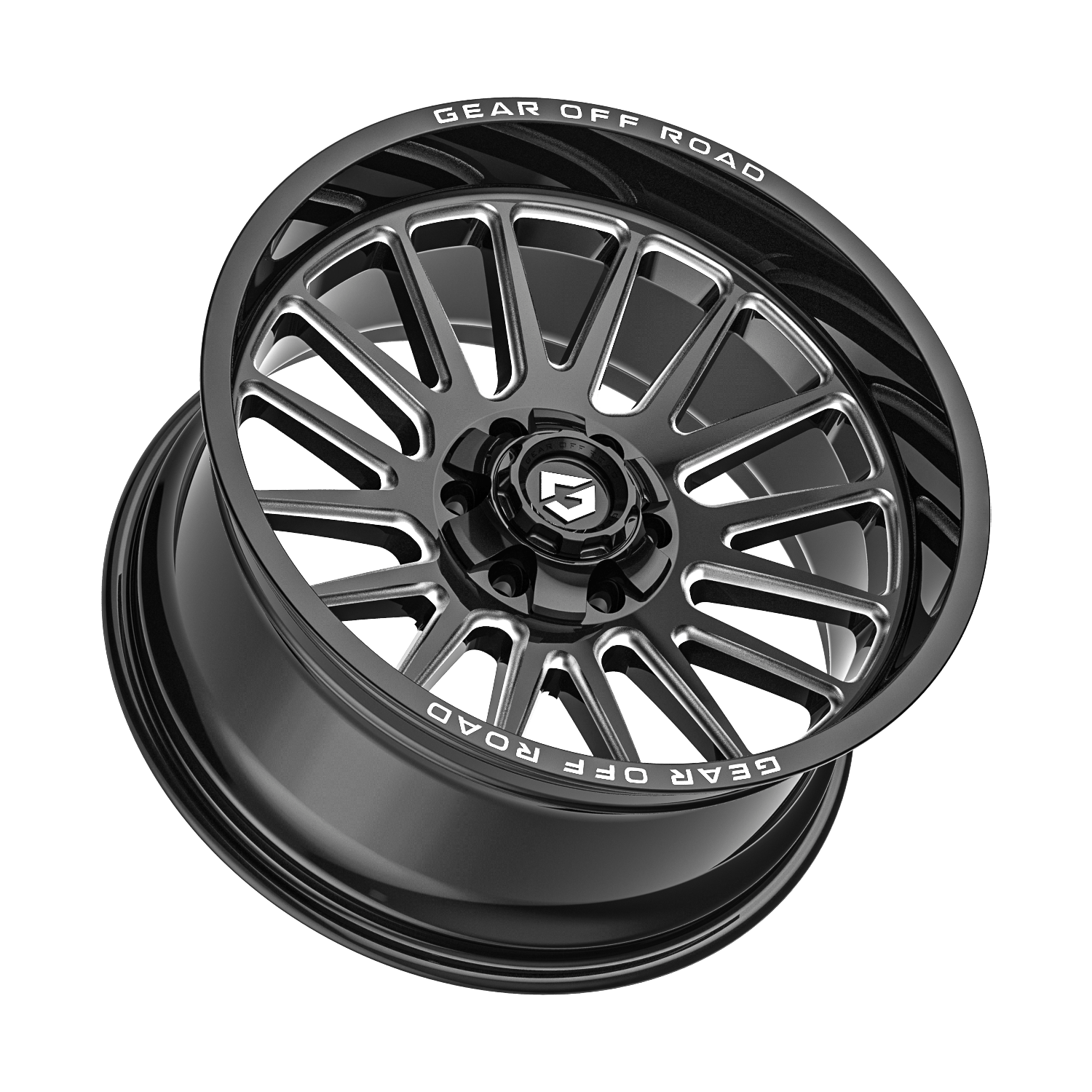

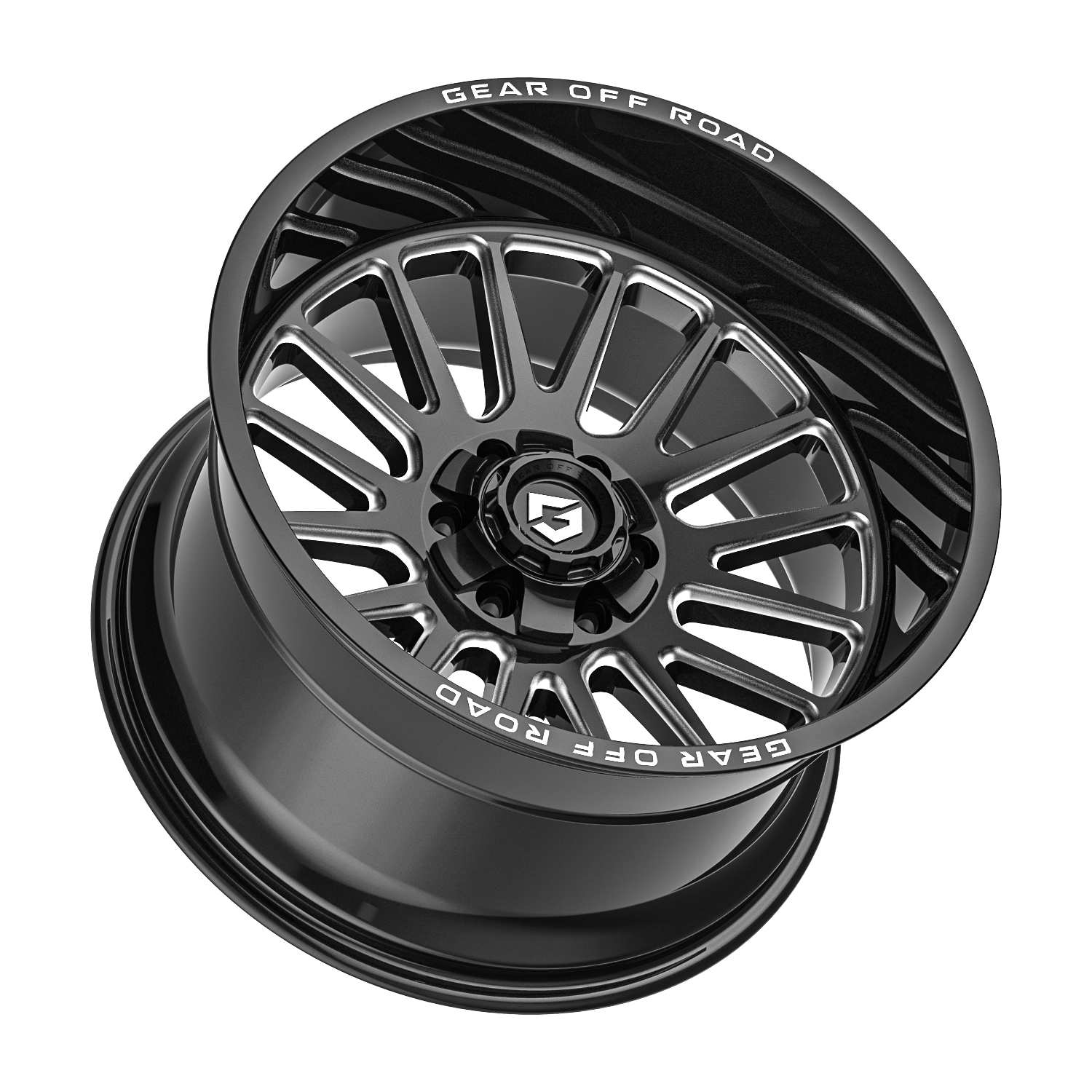

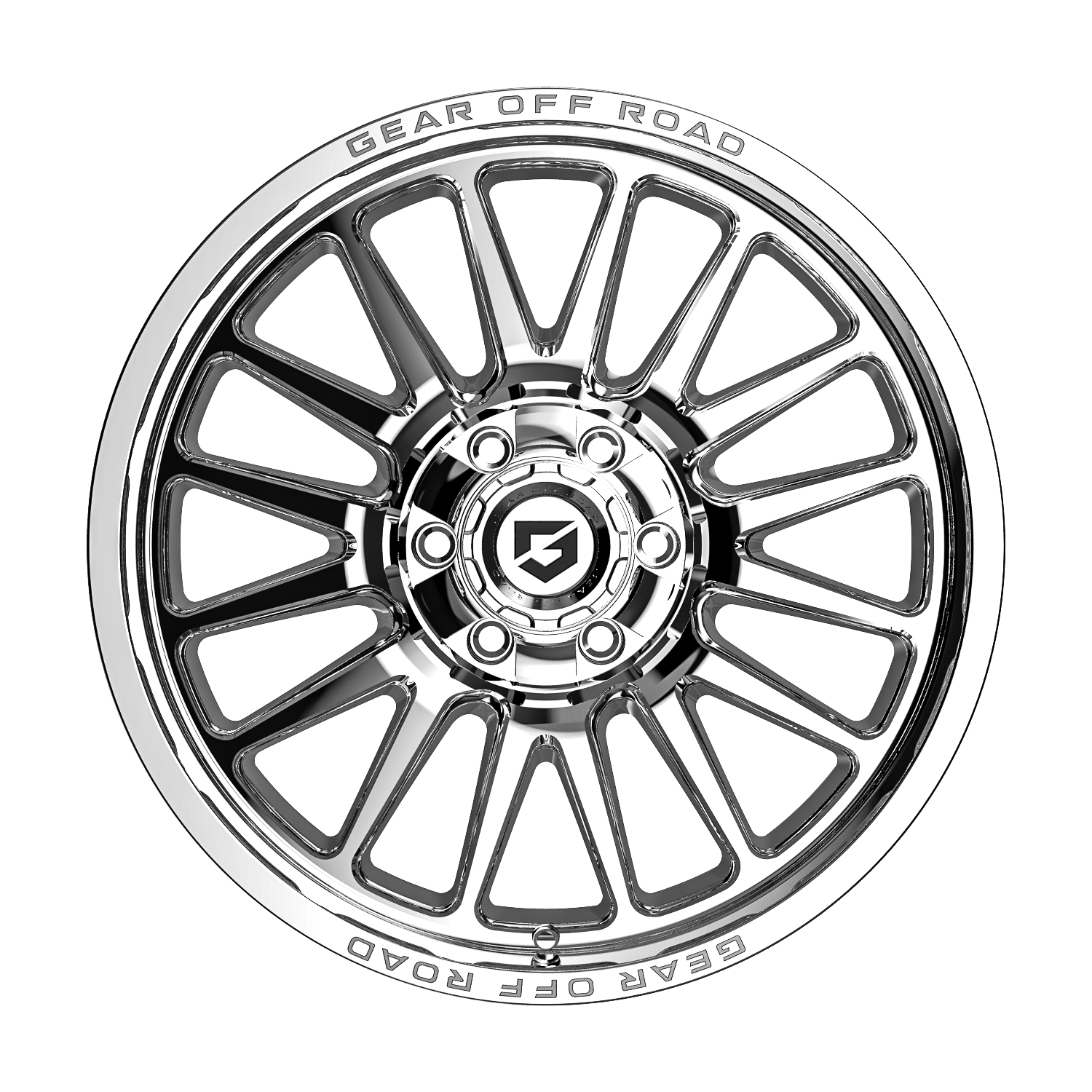

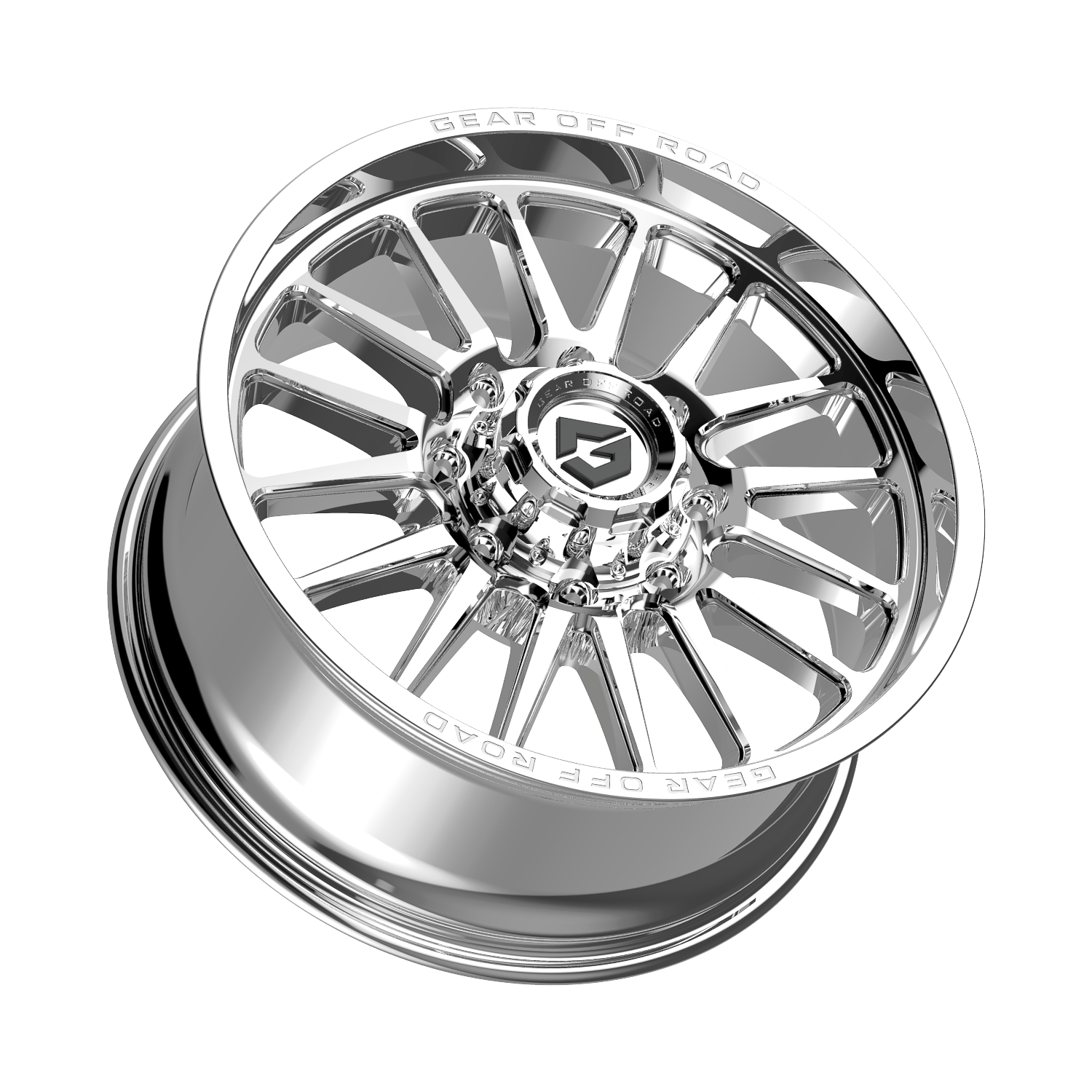

The 764 features a dual channel 8 spoke design, milled to provide the cleanest look for any truck/SUV. The Leverage’s sleek, asymmetrical design gives the classic off road style along with a deep lip proudly milled with our “Gear Off Road” name. We’ve made this wheel available in two finishes: gloss black with milled accents and chrome. Through innovative construction, these wheels were built for off road performance with looks for the streets.

PART NUMBERWHEEL SIZEBOLT CIRCLEOFFSET (MM)BACK SPACINGHUB BORE (MM)LOAD RATINGCAPLIP DEPTH
764BM-209090020x95x5.00/5x5.500587.12500CAP-H-B211.82
764BM-209681820x96x135/6x5.50185.71106.22500CAP-6H-B211.82
764BM-209811820x98x6.50185.71125.23700CAP-8L2-B211.82
764BM-209871820x98x170185.71125.23700CAP-8L2-B211.82
764BM-209891820x98x180185.71124.33700CAP-8L2-B211.82
764BM-210081920x105x5.00/5x135-194.7587.12500CAP-H-B211.98
764BM-210681920x106x135/6x5.50-194.75106.22500CAP-6H-B211.98
764BM-210811920x108x6.50-194.75125.23700CAP-8L2-B211.98
764BM-210871920x108x170-194.75125.23700CAP-8L2-B211.98
764BM-210891920x108x180-194.75124.33700CAP-8L2-B211.98
764BM-212084420x125x5.00/5x135-444.7787.12500CAP-H-B214.67
764BM-212684420x126x135/6x5.50-444.77106.22500CAP-6H-B214.67
764BM-212814420x128x6.50-444.77125.23700CAP-8L2-B214.67
764BM-212874420x128x170-444.77125.23700CAP-8L2-B214.67
764BM-212894420x128x180-444.77124.33700CAP-8L2-B214.67
764BM-220681922x106x135/6x5.50-194.75106.22500CAP-6H-B212.47
764BM-220811922x108x6.50-194.75125.23700CAP-8L2-B212.47
764BM-220871922x108x170-194.75125.23700CAP-8L2-B212.47
764C-209681820x96x135/6x5.50+185.71106.202500CAP-6H-C211.82
764C-210681920x106x135/6x5.50-194.75106.202500CAP-6H-C211.98
764C-210811920x108x6.50-194.75125.203700CAP-8L2-C211.98
764C-210871920x108x170-194.75125.203700CAP-8L2-C211.98
764C-212684420x126x135/6x5.50-444.77106.202500CAP-6H-C214.67
764C-212814420x128x6.50-444.77125.203700CAP-8L2-C214.67
764C-212874420x128x170-444.77125.203700CAP-8L2-C214.67
764C-220681922x106x135/6x5.50-194.75106.202500CAP-6H-C212.47
764C-220811922x108x6.50-194.75125.203700CAP-8L2-C212.47
764C-220871922x108x170-194.75125.203700CAP-8L2-C212.47
764C-220891922x108x180-194.75124.303700CAP-8L2-C212.47
PART NUMBERWHEEL SIZEBOLT CIRCLEOFFSET (MM)BACK SPACINGHUB BORE (MM)LOAD RATINGCAPLIP DEPTH
764BM-209090020x95x5.00/5x5.500587.12500CAP-H-B211.82
764BM-209681820x96x135/6x5.50185.71106.22500CAP-6H-B211.82
764BM-209811820x98x6.50185.71125.23700CAP-8L2-B211.82
764BM-209871820x98x170185.71125.23700CAP-8L2-B211.82
764BM-209891820x98x180185.71124.33700CAP-8L2-B211.82
764BM-210081920x105x5.00/5x135-194.7587.12500CAP-H-B211.98
764BM-210681920x106x135/6x5.50-194.75106.22500CAP-6H-B211.98
764BM-210811920x108x6.50-194.75125.23700CAP-8L2-B211.98
764BM-210871920x108x170-194.75125.23700CAP-8L2-B211.98
764BM-210891920x108x180-194.75124.33700CAP-8L2-B211.98
764BM-212084420x125x5.00/5x135-444.7787.12500CAP-H-B214.67
764BM-212684420x126x135/6x5.50-444.77106.22500CAP-6H-B214.67
764BM-212814420x128x6.50-444.77125.23700CAP-8L2-B214.67
764BM-212874420x128x170-444.77125.23700CAP-8L2-B214.67
764BM-212894420x128x180-444.77124.33700CAP-8L2-B214.67
764C-209681820x96x135/6x5.50+185.71106.202500CAP-6H-C211.82
764C-210681920x106x135/6x5.50-194.75106.202500CAP-6H-C211.98
764C-210811920x108x6.50-194.75125.203700CAP-8L2-C211.98
764C-210871920x108x170-194.75125.203700CAP-8L2-C211.98
764C-212684420x126x135/6x5.50-444.77106.202500CAP-6H-C214.67
764C-212814420x128x6.50-444.77125.203700CAP-8L2-C214.67
764C-212874420x128x170-444.77125.203700CAP-8L2-C214.67
PART NUMBERWHEEL SIZEBOLT CIRCLEOFFSET (MM)BACK SPACINGHUB BORE (MM)LOAD RATINGCAPLIP DEPTH
764BM-220681922x106x135/6x5.50-194.75106.22500CAP-6H-B212.47
764BM-220811922x108x6.50-194.75125.23700CAP-8L2-B212.47
764BM-220871922x108x170-194.75125.23700CAP-8L2-B212.47
764C-220681922x106x135/6x5.50-194.75106.202500CAP-6H-C212.47
764C-220811922x108x6.50-194.75125.203700CAP-8L2-C212.47
764C-220871922x108x170-194.75125.203700CAP-8L2-C212.47
764C-220891922x108x180-194.75124.303700CAP-8L2-C212.47
