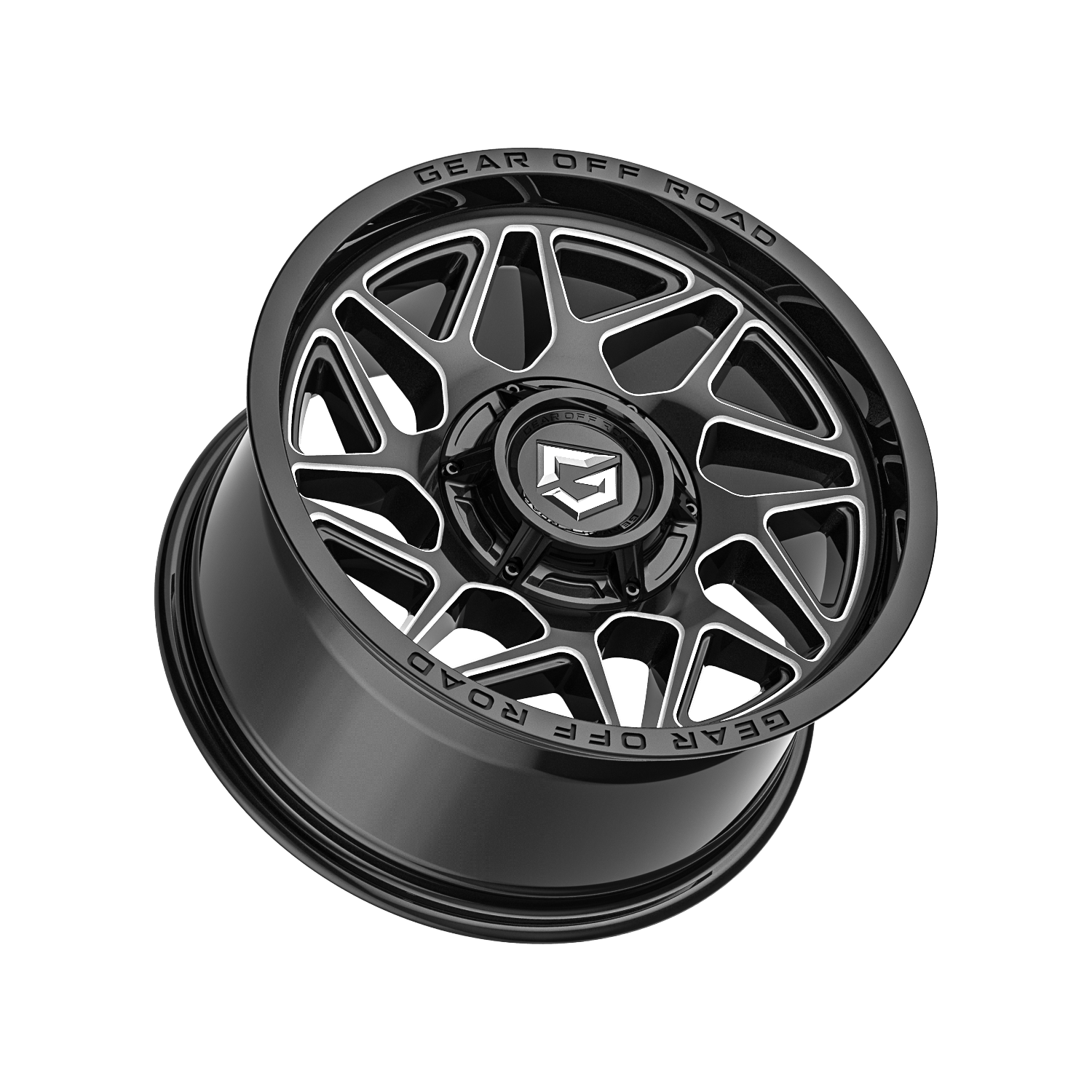

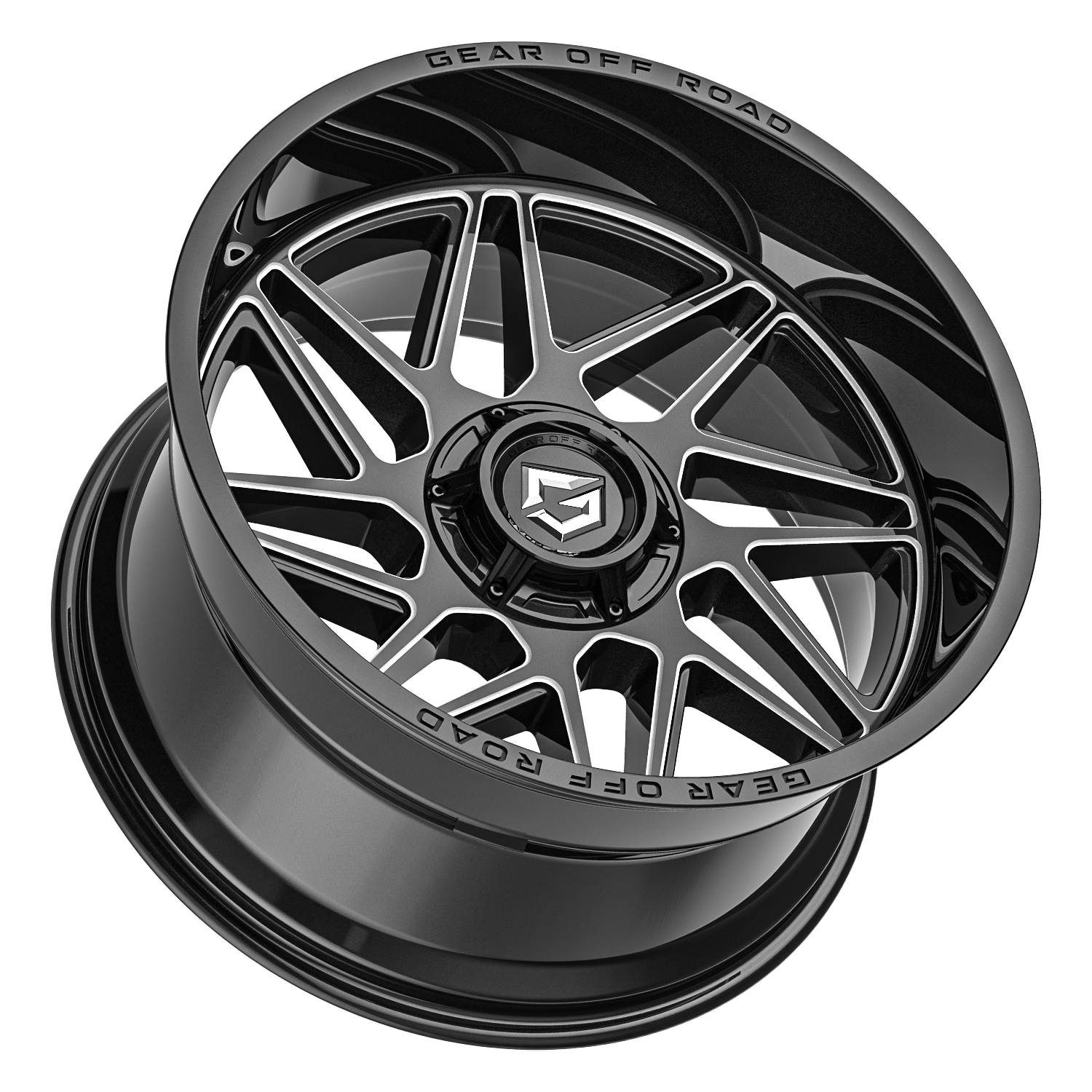

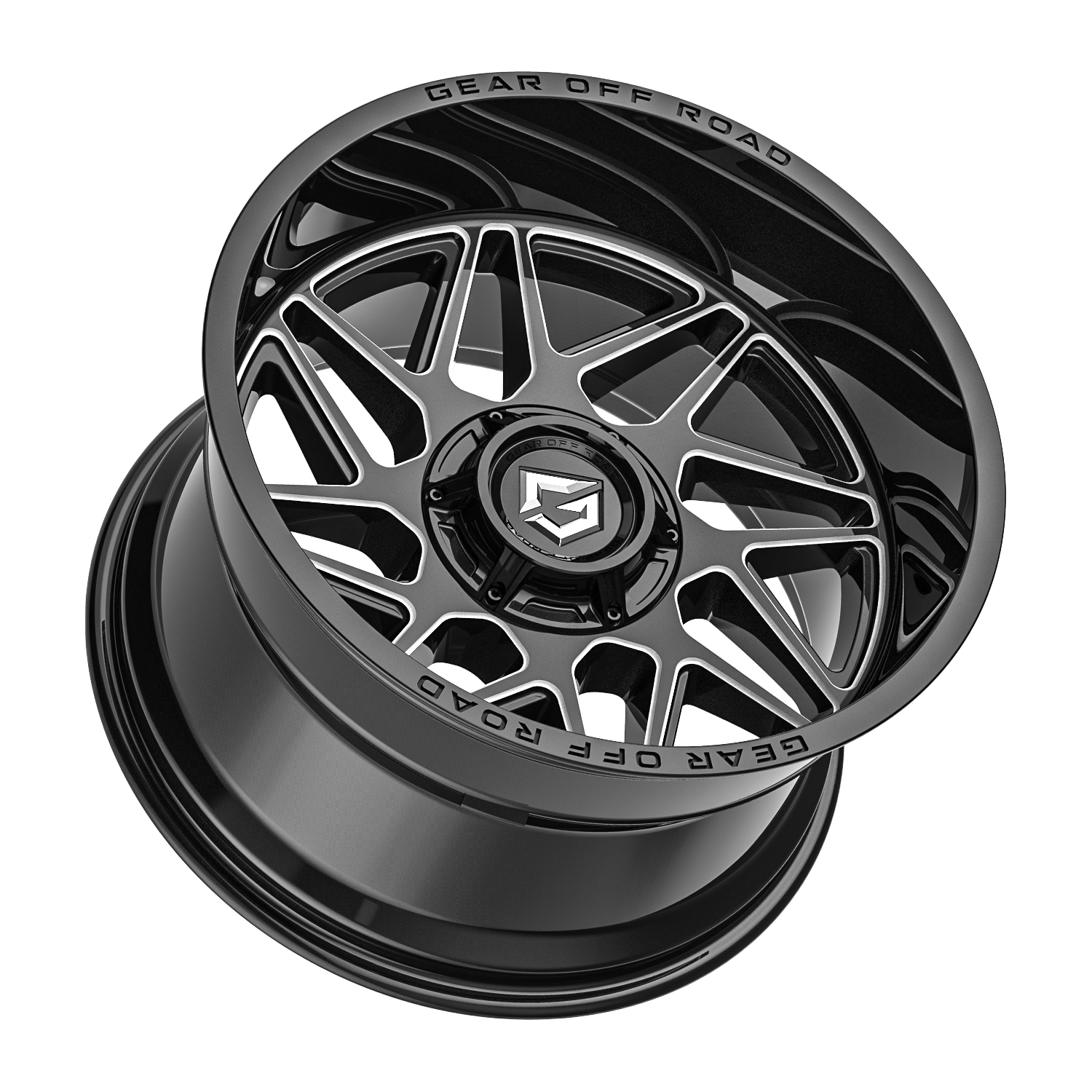

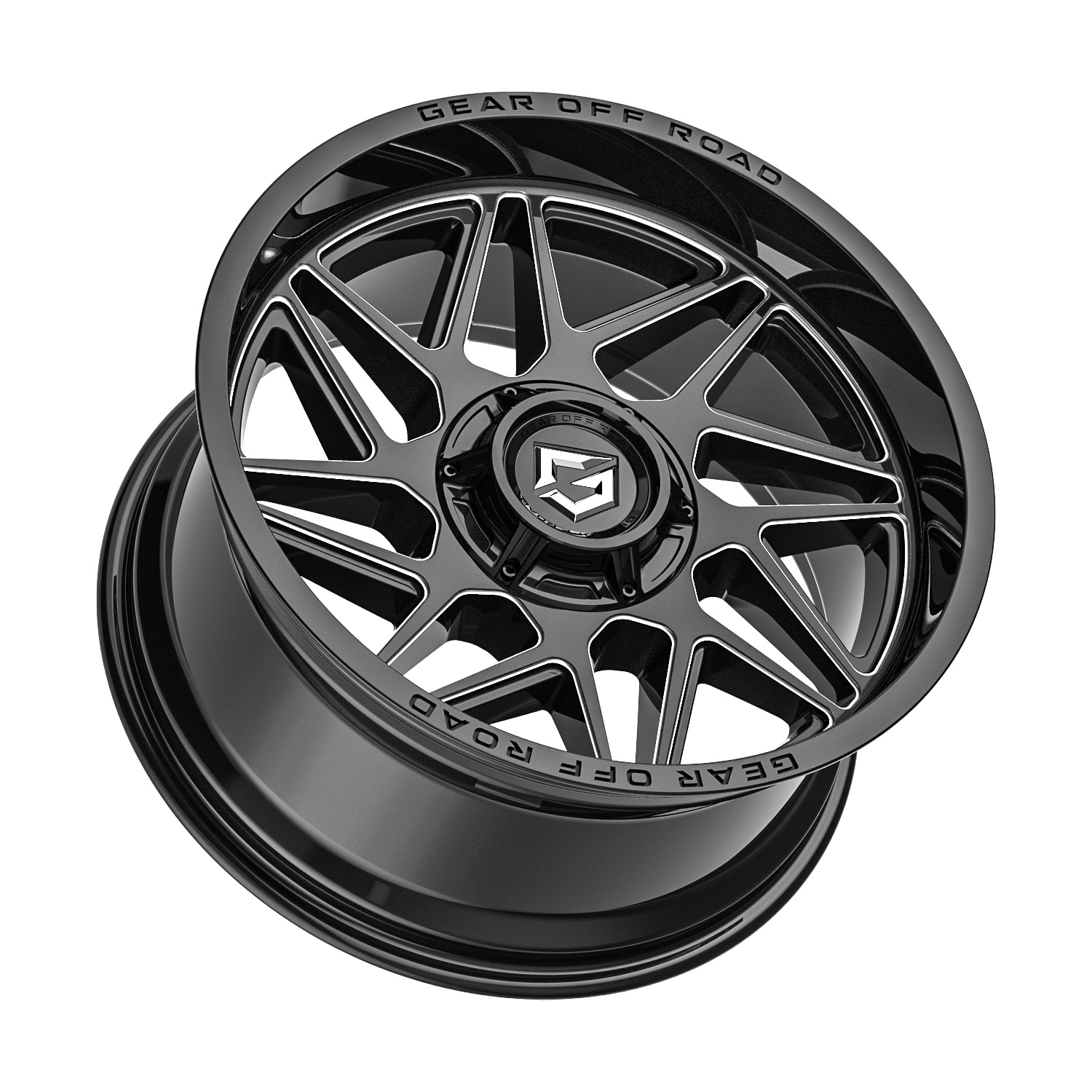

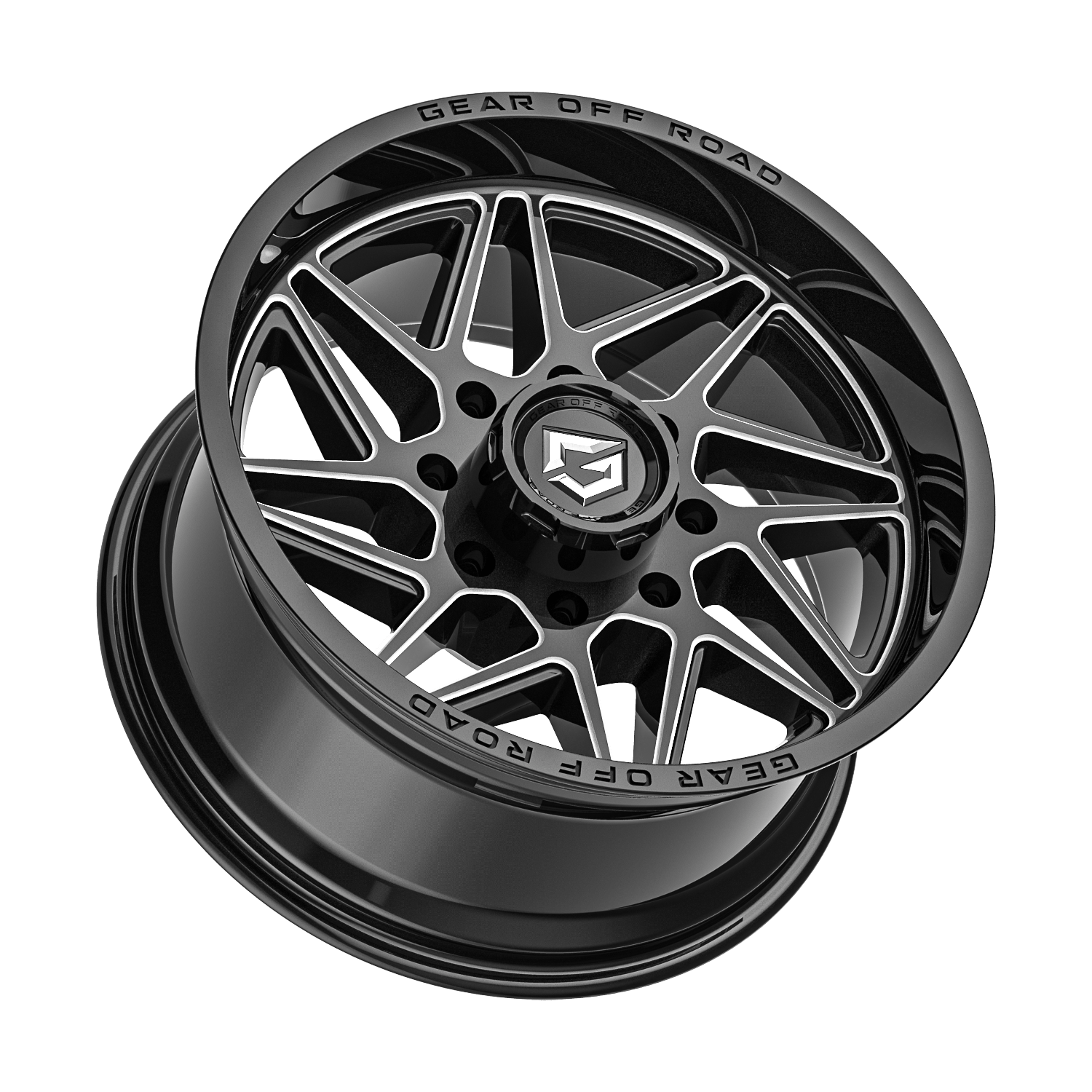

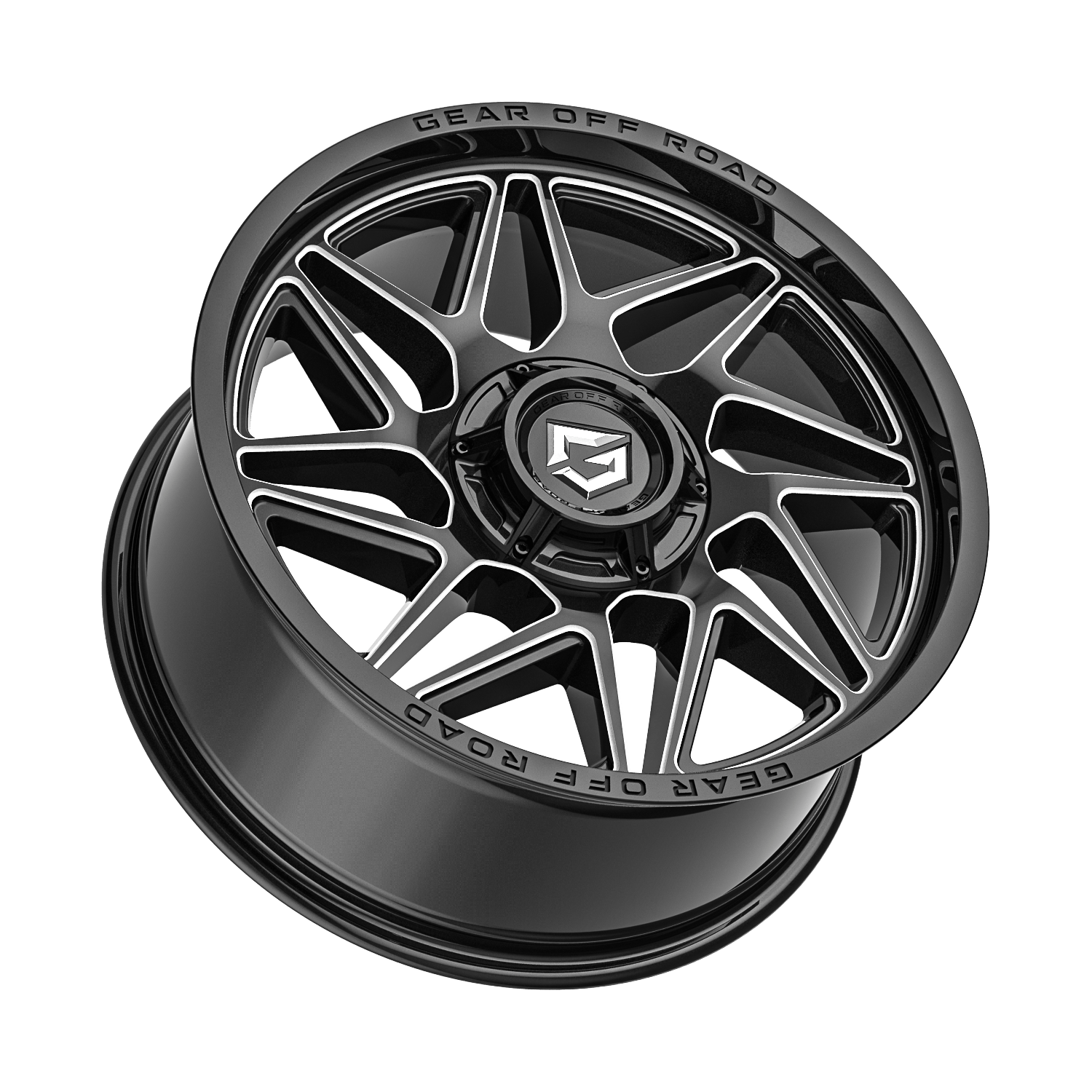

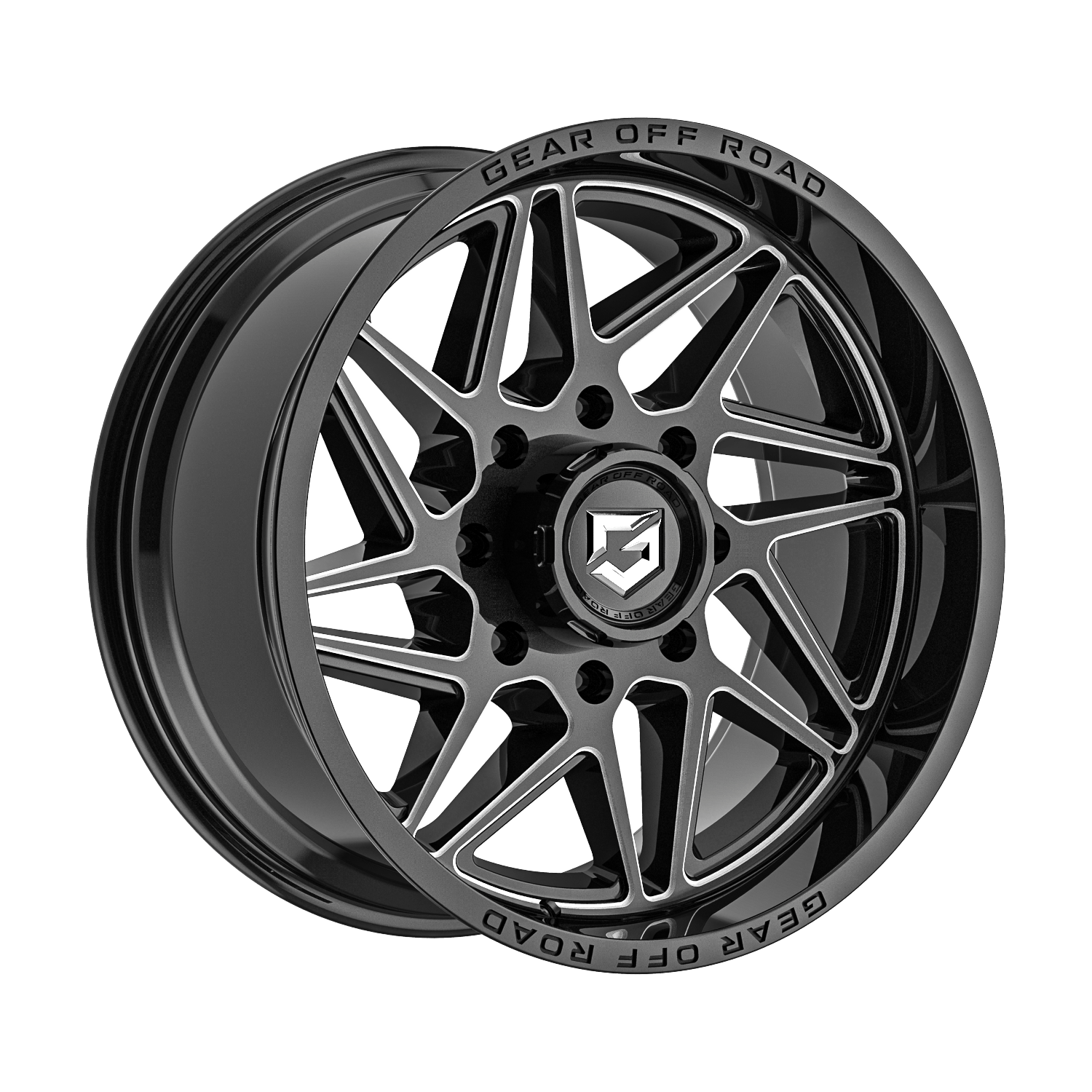

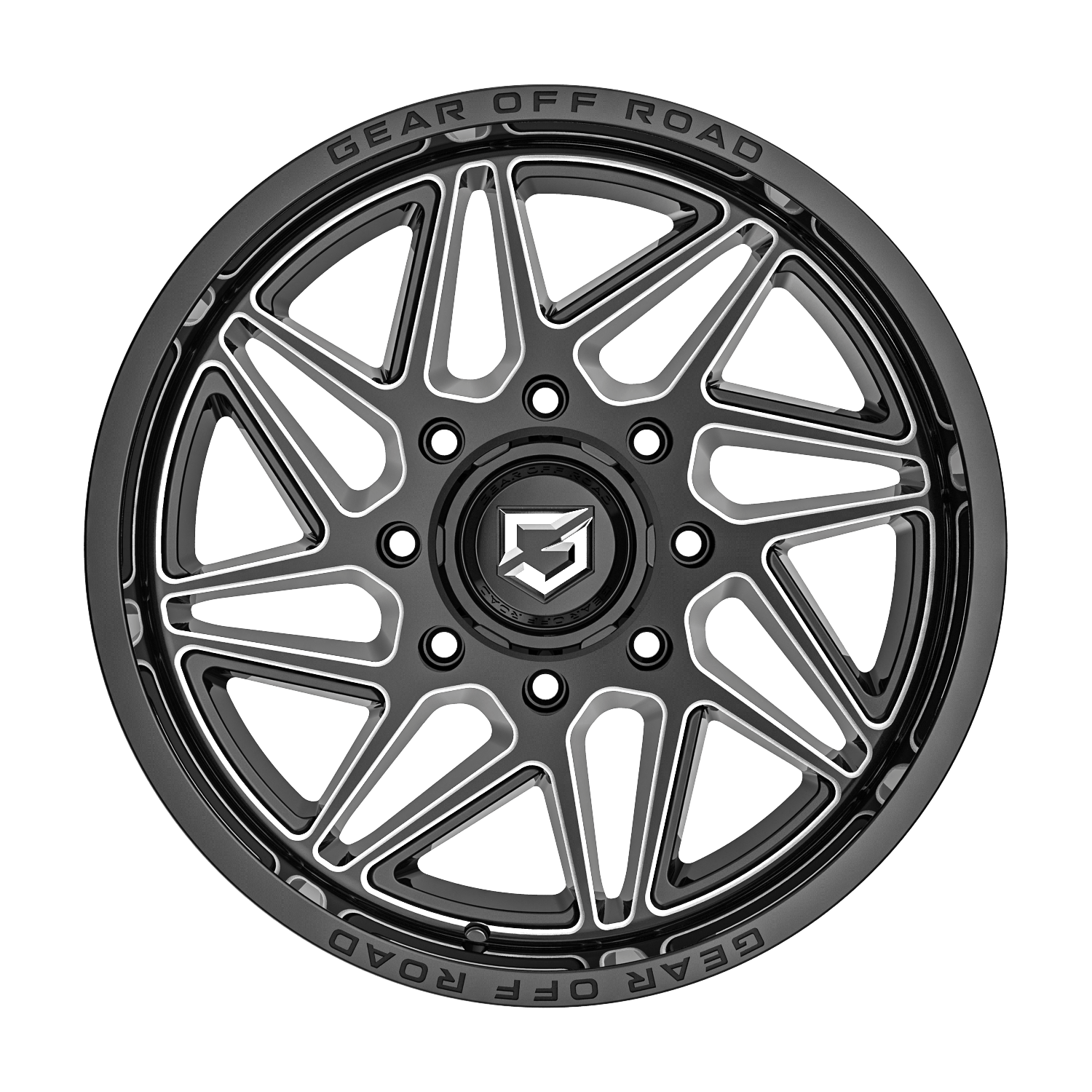

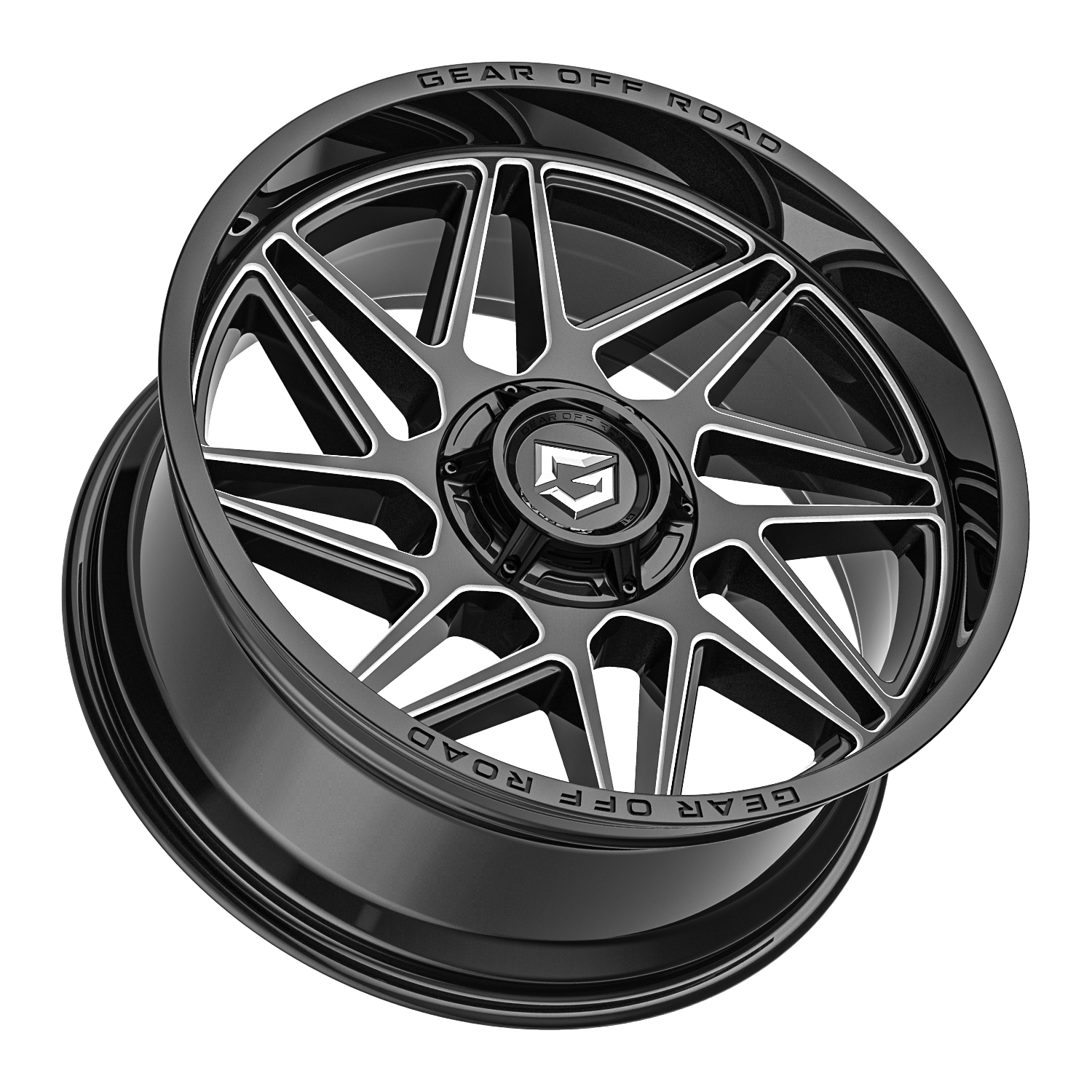

761 RATIO
GLOSS BLACK MILLED (BM)
DIAMETERS
- 17"
- 18"
- 20"
- 22"
BOLT PATTERNS
- 5x135
- 5x4.50
- 5x5.00
- 5x5.50
- 6x135
- 8x170
- 8x180
- 8x6.50

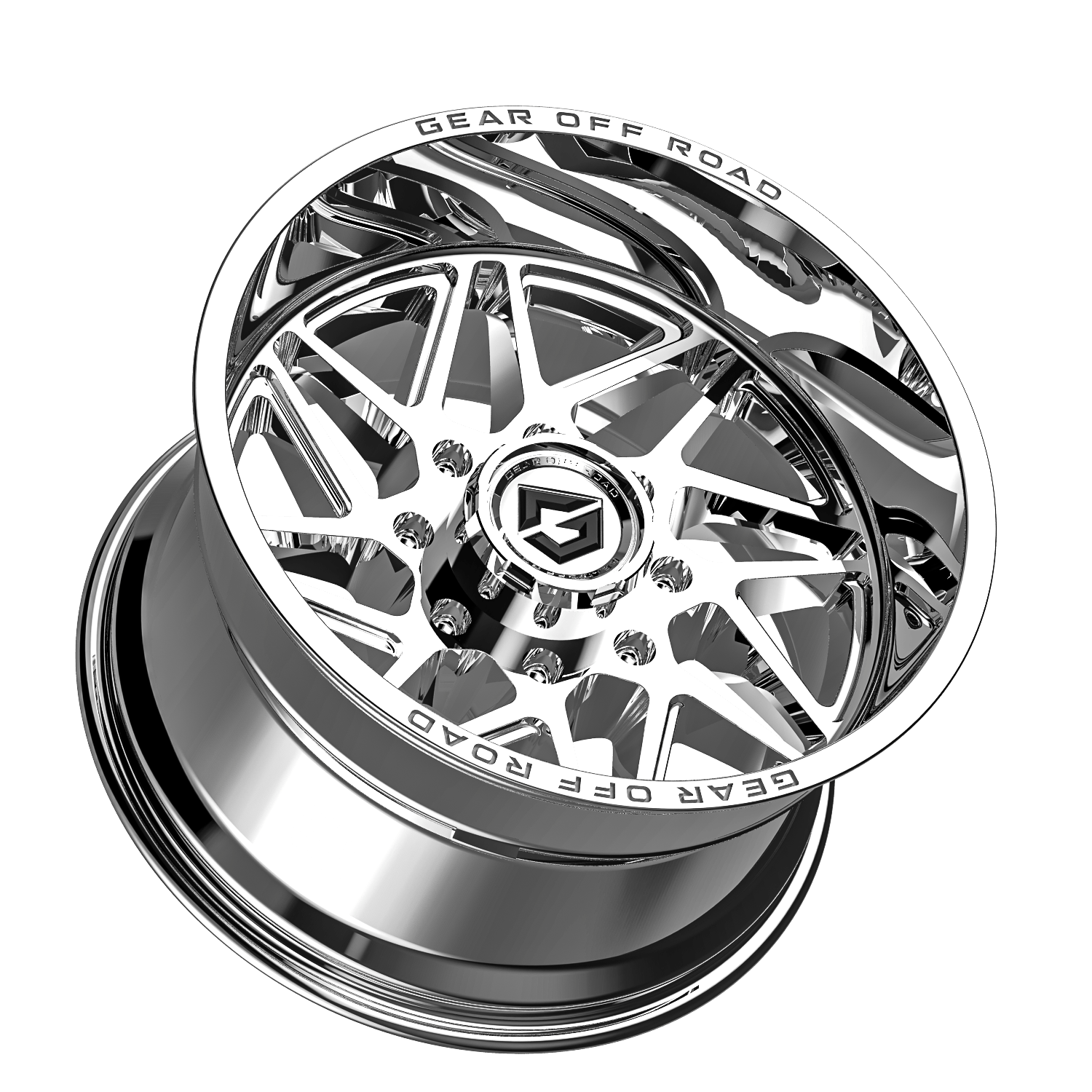

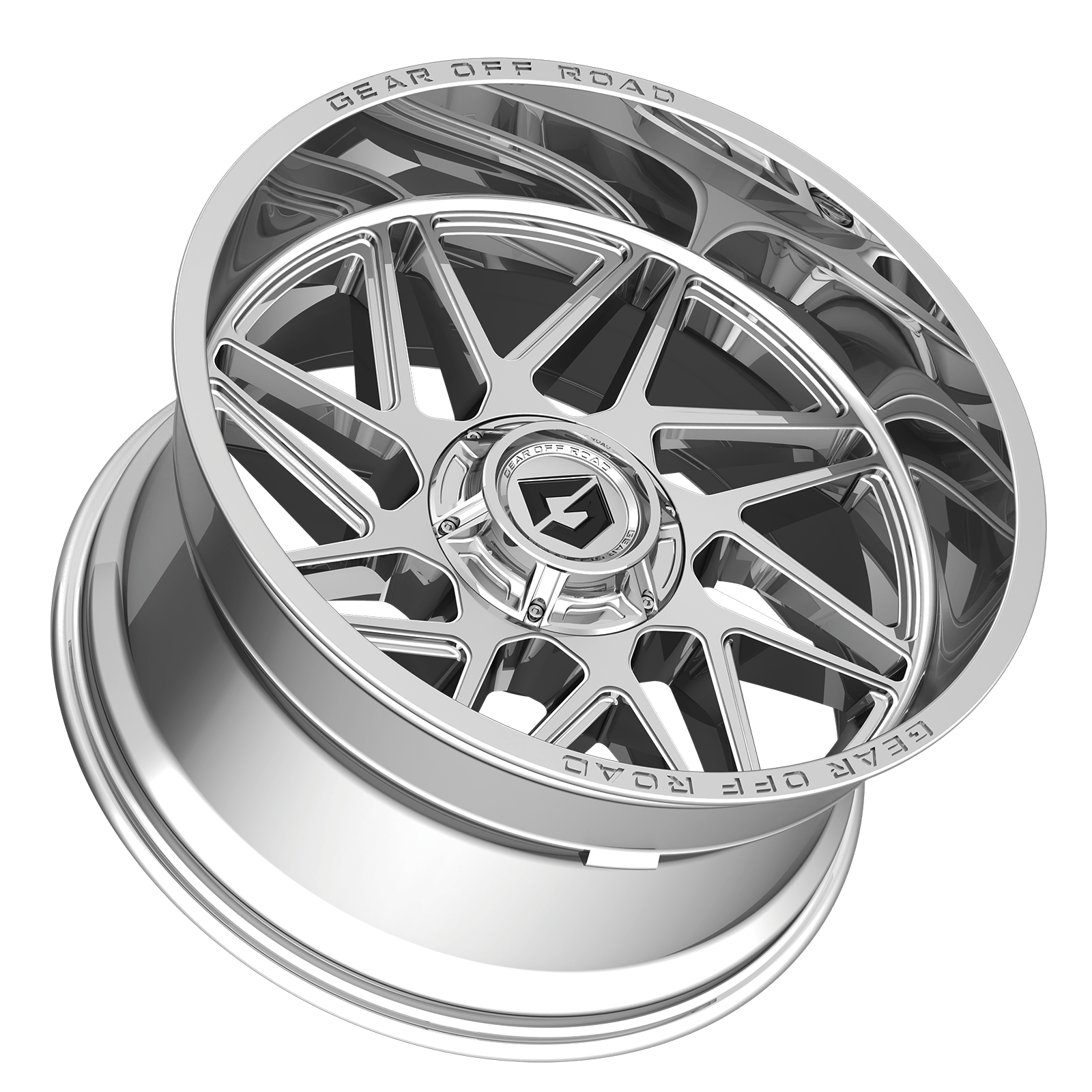

761 RATIO
CHROME (C)
DIAMETERS
- 17"
- 18"
- 20"
- 22"
BOLT PATTERNS
- 5x135
- 5x4.50
- 5x5.00
- 5x5.50
- 6x135
- 8x170
- 8x180
- 8x6.50

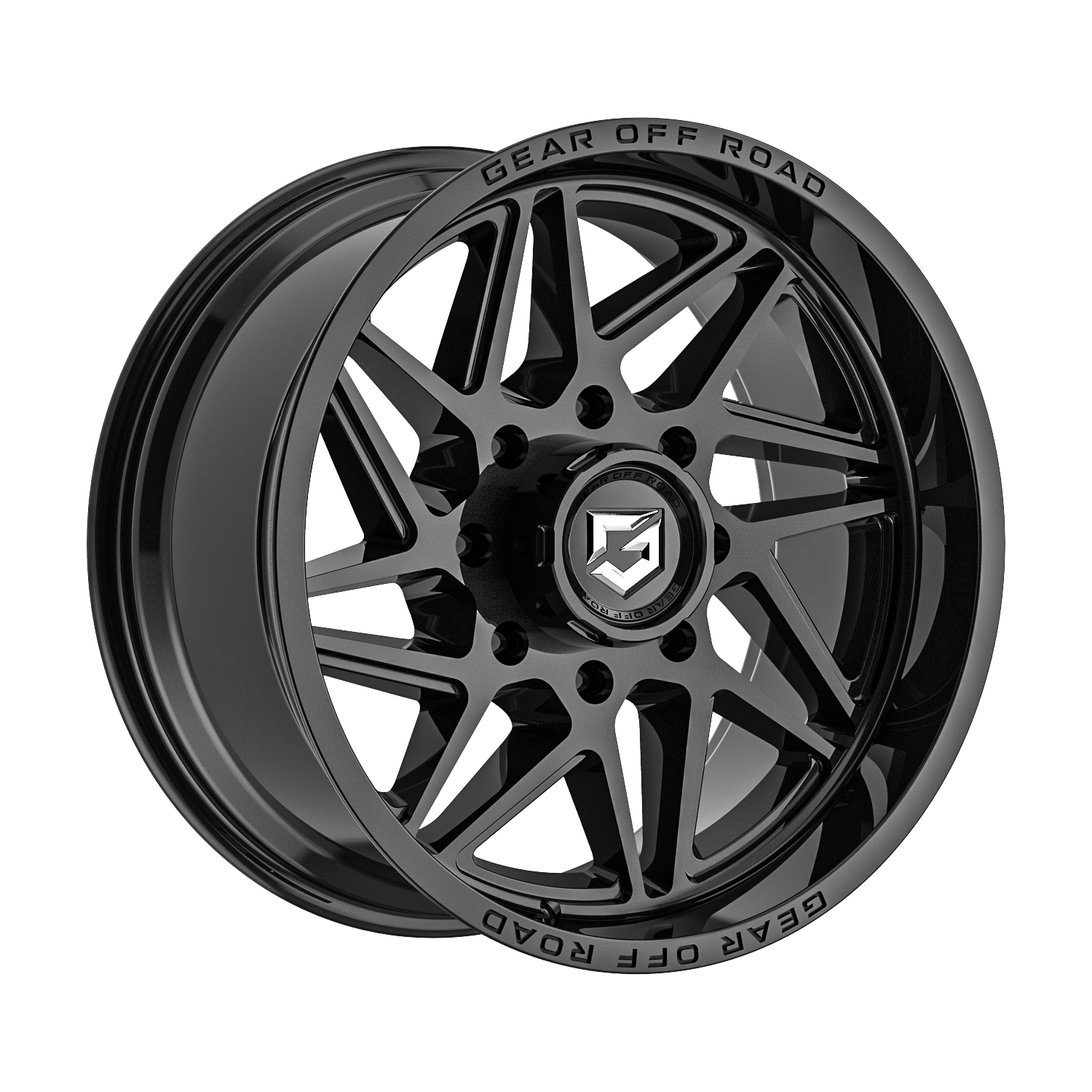

761 RATIO
GLOSS BLACK (B)
DIAMETERS
- 17"
- 18"
- 20"
- 22"
BOLT PATTERNS
- 5x135
- 5x4.50
- 5x5.00
- 5x5.50
- 6x135
- 6x5.50
- 8x170
- 8x180
- 8x6.50
U.S. PATENT NO. D930,546
KEY FEATURES:
• Exceptionally Strong A356 Aluminum Alloy
• T6 Heat Treated for Maximum Strength
• Dynamic Directional 8 Spoke Design with Refined Milling
• Dual Debossed “Gear Off Road” Name on Deep Lip
• Bolt-on Center Cap with Signature Gear Off Road Logo
• Available in Premium Finishes with Gloss Clear Coat & Chrome for Added Protection
• TPMS Compatible
• Industry-Leading 2500 lb. to 3700 lb. Load Ratings
• Lifetime Structural Warranty & 1 Year Finish Warranty
OVERVIEW:
This dynamic directional 8 spoke design features refined milling accents in addition to a deep lip, allowing this wheel to elevate the build of any truck/SUV. Designed with the off road enthusiast in mind, we used our fortified A356 aluminum alloy to give maximum durability and resistance against corrosion, abrasion, and aging. The Ratio is available in 7 finishes including: gloss red with milled accents, gloss blue with milled accents, gloss black with a red tinted machined face, gloss black with milled accents, gloss black, gloss anthracite with milled accents and chrome. Whether it’s off road or on the streets this wheel is built to look good and perform in all terrain.
DIAMETER OPTIONS
17x9
18x9
20x9
20x10
20x12
22x10
22x12
SPECIFICATIONS
| PART NUMBER | WHEEL SIZE | BOLT CIRCLE | OFFSET (MM) | BACK SPACING | HUB BORE (MM) | LOAD RATING | CAP | LIP DEPTH | MSRP | |
|---|---|---|---|---|---|---|---|---|---|---|
| 761BM-7900500 | 17x9 | 5x4.50/5x5.00 | 0 | 5 | 78.1 | 2500 | CAP-6C-B21 | 1.5 | $244.00 | |
| 761BM-7905100 | 17x9 | 5x135/5x5.50 | 0 | 5 | 87.1 | 2500 | CAP-6C-B21 | 1.5 | $244.00 | |
| 761BM-7906800 | 17x9 | 6x135/6x5.50 | 0 | 5 | 106.2 | 2500 | CAP-6C-B21 | 1.5 | $244.00 | |
| 761BM-7908100 | 17x9 | 8x6.50 | 0 | 5 | 125.2 | 3700 | CAP-8L-B21 | 1.5 | $244.00 | |
| 761BM-7908700 | 17x9 | 8x170 | 0 | 5 | 125.2 | 3700 | CAP-8LT-B21 | 1.5 | $244.00 | |
| 761BM-8906818 | 18x9 | 6x135/6x5.50 | 18 | 5.71 | 106.2 | 2500 | CAP-6C-B21 | 1.1 | $264.00 | |
| 761BM-8908118 | 18x9 | 8x6.50 | 18 | 5.71 | 125.2 | 3700 | CAP-8L-B21 | 1.1 | $264.00 | |
| 761BM-2095218 | 20x9 | 5x5.50/5x150 | 18 | 5.71 | 110.2 | 2500 | CAP-6C-B21 | 1.1 | $306.00 | |
| 761BM-2096818 | 20x9 | 6x135/6x5.50 | 18 | 5.71 | 106.2 | 2500 | CAP-6C-B21 | 1.1 | $306.00 | |
| 761BM-2100819 | 20x10 | 5x5.00/5x135 | -19 | 4.75 | 87.1 | 2500 | CAP-6C-B21 | 2.36 | $327.00 | |
| 761BM-2105219 | 20x10 | 5x5.50/5x150 | -19 | 4.75 | 110.2 | 2500 | CAP-6C-B21 | 2.36 | $327.00 | |
| 761BM-2106819 | 20x10 | 6x135/6x5.50 | -19 | 4.75 | 106.2 | 2500 | CAP-6C-B21 | 2.36 | $327.00 | |
| 761BM-2108919 | 20x10 | 8x180 | -19 | 4.75 | 124.3 | 3700 | CAP-8L-B21 | 2.36 | $327.00 | |
| 761BM-2120844 | 20x12 | 5x5.00/5x135 | -44 | 4.77 | 87.1 | 2500 | CAP-6C-B21 | 4.25 | $353.00 | |
| 761BM-2125244 | 20x12 | 5x5.50/5x150 | -44 | 4.77 | 110.2 | 2500 | CAP-6C-B21 | 4.25 | $353.00 | |
| 761BM-2128144 | 20x12 | 8x6.50 | -44 | 4.77 | 125.2 | 3700 | CAP-8L-B21 | 4.25 | $353.00 | |
| 761BM-2128944 | 20x12 | 8x180 | -44 | 4.77 | 124.3 | 3700 | CAP-8L-B21 | 4.25 | $353.00 | |
| 761BM-2206810 | 22X10 | 6X135/6X5.50 | 10 | 5.89 | 106.2 | 2500 | CAP-6C-B21 | 1 | $392.00 | |
| 761BM-2206819 | 22x10 | 6x135/6x5.50 | -19 | 4.75 | 106.2 | 2500 | CAP-6C-B21 | 2.36 | $392.00 | |
| 761BM-2208719 | 22x10 | 8x170 | -19 | 4.75 | 125.2 | 3700 | CAP-8L-B21 | 2.36 | $392.00 | |
| 761BM-2208919 | 22x10 | 8x180 | -19 | 4.75 | 124.3 | 3700 | CAP-8L-B21 | 2.36 | $392.00 | |
| 761BM-2228744 | 22x12 | 8x170 | -44 | 4.77 | 125.2 | 3700 | CAP-8L-B21 | 4.25 | $407.00 | |
| 761C-8906818 | 18x9 | 6x135/6x5.50 | 18 | 5.71 | 106.2 | 2500 | CAP-6C-C21 | 1.1 | $361.00 | |
| 761C-8908118 | 18x9 | 8x6.50 | 18 | 5.71 | 125.2 | 3700 | CAP-8L-C21 | 1.1 | $361.00 | |
| 761C-8908718 | 18x9 | 8x170 | 18 | 5.71 | 125.2 | 3700 | CAP-8LT-C21 | 1.1 | $361.00 | |
| 761C-8908918 | 18x9 | 8x180 | 18 | 5.71 | 124.3 | 3700 | CAP-8L-C21 | 1.1 | $361.00 | |
| 761C-2095218 | 20x9 | 5x5.50/5x150 | 18 | 5.71 | 110.2 | 2500 | CAP-6C-C21 | 1.1 | $422.00 | |
| 761C-2096818 | 20x9 | 6x135/6x5.50 | 18 | 5.71 | 106.2 | 2500 | CAP-6C-C21 | 1.1 | $422.00 | |
| 761C-2098118 | 20x9 | 8x6.50 | 18 | 5.71 | 125.2 | 3700 | CAP-8L-C21 | 1.1 | $422.00 | |
| 761C-2098918 | 20x9 | 8x180 | 18 | 5.71 | 124.3 | 3700 | CAP-8L-C21 | 1.1 | $422.00 | |
| 761C-2105219 | 20x10 | 5x5.50/5x150 | -19 | 4.75 | 110.2 | 2500 | CAP-6C-C21 | 2.36 | $432.00 | |
| 761C-2108119 | 20x10 | 8x6.50 | -19 | 4.75 | 125.2 | 3700 | CAP-8L-C21 | 2.36 | $432.00 | |
| 761C-2108719 | 20x10 | 8x170 | -19 | 4.75 | 125.2 | 3700 | CAP-8L-C21 | 2.36 | $432.00 | |
| 761C-2108919 | 20x10 | 8x180 | -19 | 4.75 | 124.3 | 3700 | CAP-8L-C21 | 2.36 | $432.00 | |
| 761C-2126844 | 20x12 | 6x135/6x5.50 | -44 | 4.77 | 106.2 | 2500 | CAP-6C-C21 | 4.25 | $452.00 | |
| 761C-2128144 | 20X12 | 8X6.50 | -44 | 4.77 | 124.3 | CAP-8L-C21 | 4.25 | $452.00 | ||
| 761C-2128744 | 20X12 | 8X170 | -44 | 4.77 | 124.3 | 3700 | CAP-8L-C21 | 4.25 | $452.00 | |
| 761C-2206810 | 22X10 | 6X135/6X5.50 | 10 | 5.89 | 106.2 | 2500 | CAP-6C-C21 | 1 | $529.00 | |
| 761C-2206819 | 22x10 | 6x135/6x5.50 | -19 | 4.75 | 106.2 | 2500 | CAP-6C-C21 | 2.36 | $529.00 | |
| 761C-2225244 | 22x12 | 5x5.50/5x150 | -44 | 4.77 | 110.2 | 2500 | CAP-6C-C21 | 4.25 | $548.00 | |
| 761C-2226844 | 22x12 | 6x135/6x5.50 | -44 | 4.77 | 106.2 | 2500 | CAP-6C-C21 | 4.25 | $548.00 | |
| 761C-2228744 | 22x12 | 8x170 | -44 | 4.77 | 125.2 | 3700 | CAP-8L-C21 | 4.25 | $548.00 | |
| 761B-7900500 | 17x9 | 5x4.50/5x5.00 | 0 | 5 | 78.1 | 2500 | CAP-6C-B21 | 1.5 | $216.00 | |
| 761B-7905100 | 17x9 | 5x135/5x5.50 | 0 | 5 | 87.1 | 2500 | CAP-6C-B21 | 1.5 | $216.00 | |
| 761B-7906800 | 17x9 | 6x135/6x5.50 | 0 | 5 | 106.2 | 2500 | CAP-6C-B21 | 1.5 | $216.00 | |
| 761B-7908100 | 17x9 | 8x6.50 | 0 | 5 | 125.2 | 3700 | CAP-8L-B21 | 1.5 | $216.00 | |
| 761B-8900910 | 18x9 | 5x5.00/5x5.50 | 10 | 5.39 | 87.1 | 2500 | CAP-6C-B21 | 1.1 | $244.00 | |
| 761B-8905218 | 18x9 | 5x5.50/5x150 | 18 | 5.71 | 110.2 | 2500 | CAP-6C-B21 | 1.1 | $244.00 | |
| 761B-8906818 | 18x9 | 6x135/6x5.50 | 18 | 5.71 | 106.2 | 2500 | CAP-6C-B21 | 1.1 | $244.00 | |
| 761B-8908118 | 18x9 | 8x6.50 | 18 | 5.71 | 125.2 | 3700 | CAP-8L-B21 | 1.1 | $244.00 | |
| 761B-8908718 | 18x9 | 8x170 | 18 | 5.71 | 125.2 | 3700 | CAP-8LT-B21 | 1.1 | $244.00 | |
| 761B-8908918 | 18x9 | 8x180 | 18 | 5.71 | 124.3 | 3700 | CAP-8L-B21 | 1.1 | $244.00 | |
| 761B-2090900 | 20x9 | 5x5.00/5x5.50 | 0 | 5 | 87.1 | 2500 | CAP-6C-B21 | 1.1 | $279.00 | |
| 761B-2095218 | 20x9 | 5x5.50/5x150 | 18 | 5.71 | 110.2 | 2500 | CAP-6C-B21 | 1.1 | $279.00 | |
| 761B-2096818 | 20x9 | 6x135/6x5.50 | 18 | 5.71 | 106.2 | 2500 | CAP-6C-B21 | 1.1 | $279.00 | |
| 761B-2098118 | 20x9 | 8x6.50 | 18 | 5.71 | 125.2 | 3700 | CAP-8L-B21 | 1.1 | $279.00 | |
| 761B-2098718 | 20x9 | 8x170 | 18 | 5.71 | 125.2 | 3700 | CAP-8LT-B21 | 1.1 | $279.00 | |
| 761B-2098918 | 20x9 | 8x180 | 18 | 5.71 | 124.3 | 3700 | CAP-8L-B21 | 1.1 | $279.00 | |
| 761B-2100819 | 20x10 | 5x5.00/5x135 | -19 | 4.75 | 87.1 | 2500 | CAP-6C-B21 | 2.36 | $303.00 | |
| 761B-2105219 | 20x10 | 5x5.50/5x150 | -19 | 4.75 | 110.2 | 2500 | CAP-6C-B21 | 2.36 | $303.00 | |
| 761B-2106819 | 20x10 | 6x135/6x5.50 | -19 | 4.75 | 106.2 | 2500 | CAP-6C-B21 | 2.36 | $303.00 | |
| 761B-2108119 | 20x10 | 8x6.50 | -19 | 4.75 | 125.2 | 3700 | CAP-8L-B21 | 2.36 | $303.00 | |
| 761B-2108719 | 20x10 | 8x170 | -19 | 4.75 | 125.2 | 3700 | CAP-8L-B21 | 2.36 | $303.00 | |
| 761B-2108919 | 20x10 | 8x180 | -19 | 4.75 | 124.3 | 3700 | CAP-8L-B21 | 2.36 | $303.00 | |
| 761B-2128144 | 20x12 | 8x6.50 | -44 | 4.77 | 125.2 | 3700 | CAP-8L-B21 | 4.25 | $325.00 | |
| 761B-2128944 | 20x12 | 8x180 | -44 | 4.77 | 124.3 | 3700 | CAP-8L-B21 | 4.25 | $325.00 | |
| 761B-2206810 | 22X10 | 6X135/6X5.50 | 10 | 5.89 | 106.2 | 2500 | CAP-6C-B21 | 1 | $368.00 | |
| 761B-2206819 | 22x10 | 6x135/6x5.50 | -19 | 4.75 | 106.2 | 2500 | CAP-6C-B21 | 2.36 | $368.00 | |
| 761B-2208119 | 22x10 | 8x6.50 | -19 | 4.75 | 125.2 | 3700 | CAP-8L-B21 | 2.36 | $368.00 | |
| 761B-2208719 | 22x10 | 8x170 | -19 | 4.75 | 125.2 | 3700 | CAP-8L-B21 | 2.36 | $368.00 | |
| 761B-2208919 | 22x10 | 8x180 | -19 | 4.75 | 124.3 | 3700 | CAP-8L-B21 | 2.36 | $368.00 | |
| 761B-2226844 | 22x12 | 6x135/6x5.50 | -44 | 4.77 | 106.2 | 2500 | CAP-6C-B21 | 4.25 | $378.00 | |
