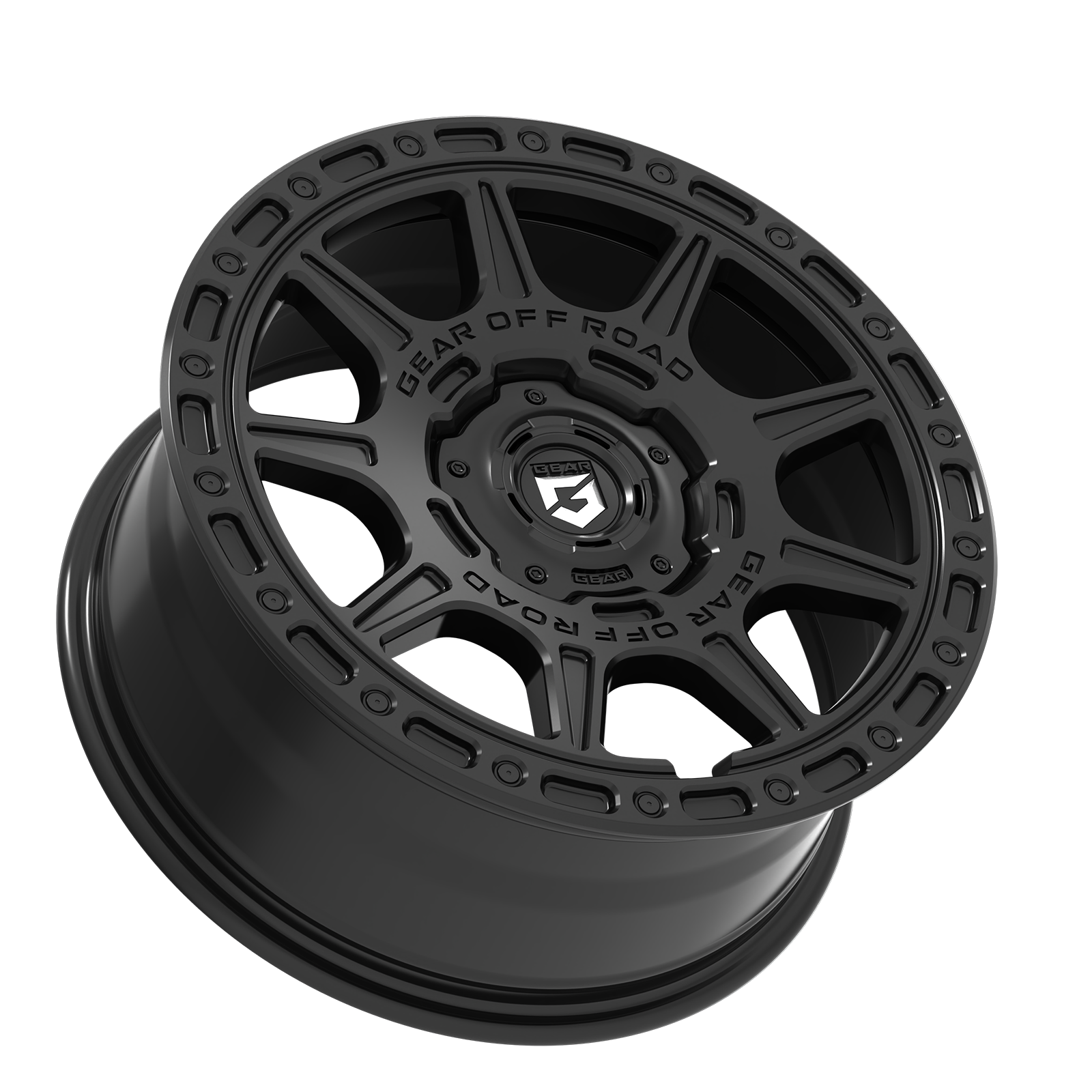

758 – SECTOR-C
U.S. PATENT NO. D887,944
BOLT PATTERNS:
- 5x100
- 5x4.50
- 5x110
- 5x5.00
| PART NUMBER | WHEEL SIZE | BOLT CIRCLE | BOLT CIRCLE 2 | OFFSET (MM) | BACK SPACING | HUB BORE (MM) | LOAD RATING | CAP |
|---|
| 758SB-7801835 | 17x8 | 5x100/5x4.50 | | 35 | 5.88 | 67.1 | 1800 | CAP-5C3-M20 |
| 758SB-7802935 | 17x8 | 5x110/5x5.00 | | 35 | 5.88 | 73.1 | 1800 | CAP-5C3-M20 |
| 758SB-8801835 | 18x8 | 5x100/5x4.50 | | 35 | 5.88 | 67.1 | 1800 | CAP-5C3-M20 |
| 758SB-8802935 | 18x8 | 5x110/5x5.00 | | 35 | 5.88 | 73.1 | 1800 | CAP-5C3-M20 |
| PART NUMBER | WHEEL SIZE | BOLT CIRCLE | BOLT CIRCLE 2 | OFFSET (MM) | BACK SPACING | HUB BORE (MM) | LOAD RATING | CAP |
|---|
| 758SB-7801835 | 17x8 | 5x100/5x4.50 | | 35 | 5.88 | 67.1 | 1800 | CAP-5C3-M20 |
| 758SB-7802935 | 17x8 | 5x110/5x5.00 | | 35 | 5.88 | 73.1 | 1800 | CAP-5C3-M20 |
| PART NUMBER | WHEEL SIZE | BOLT CIRCLE | BOLT CIRCLE 2 | OFFSET (MM) | BACK SPACING | HUB BORE (MM) | LOAD RATING | CAP |
|---|
| 758SB-8801835 | 18x8 | 5x100/5x4.50 | | 35 | 5.88 | 67.1 | 1800 | CAP-5C3-M20 |
| 758SB-8802935 | 18x8 | 5x110/5x5.00 | | 35 | 5.88 | 73.1 | 1800 | CAP-5C3-M20 |
Center Caps
