(BB)

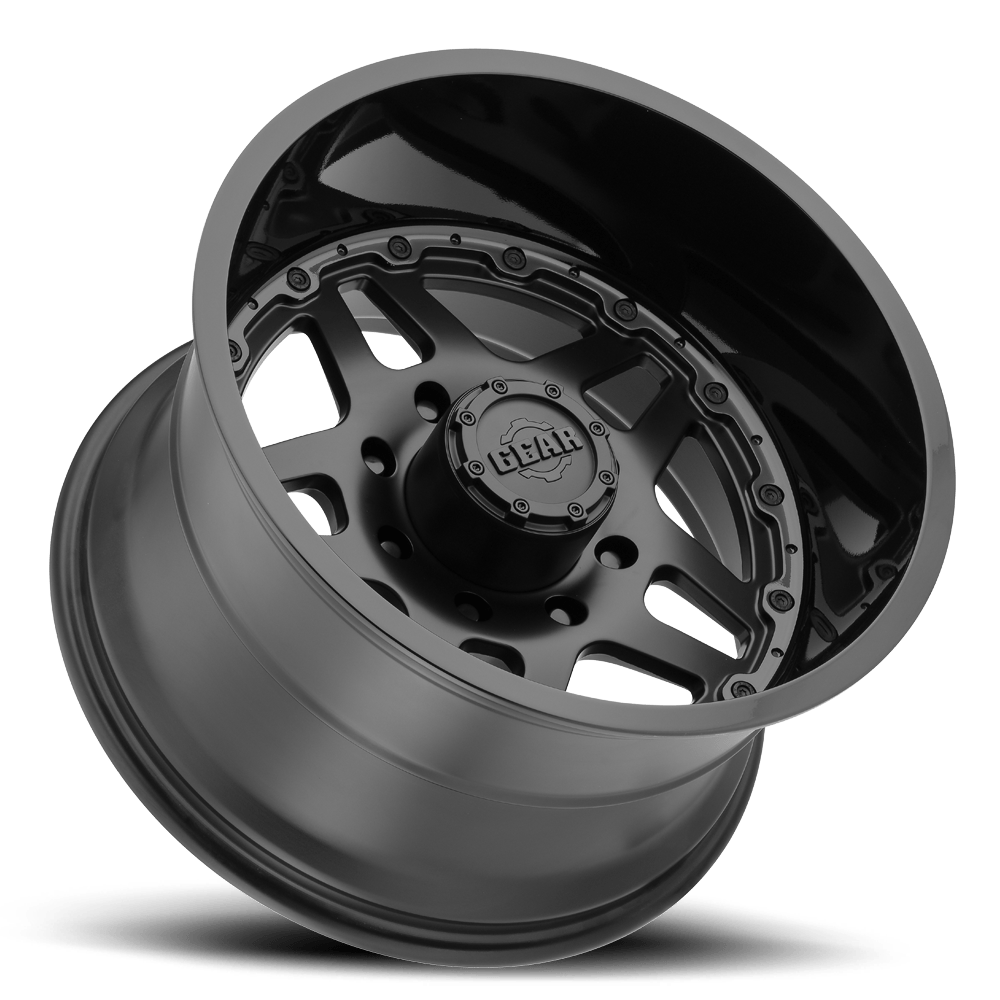

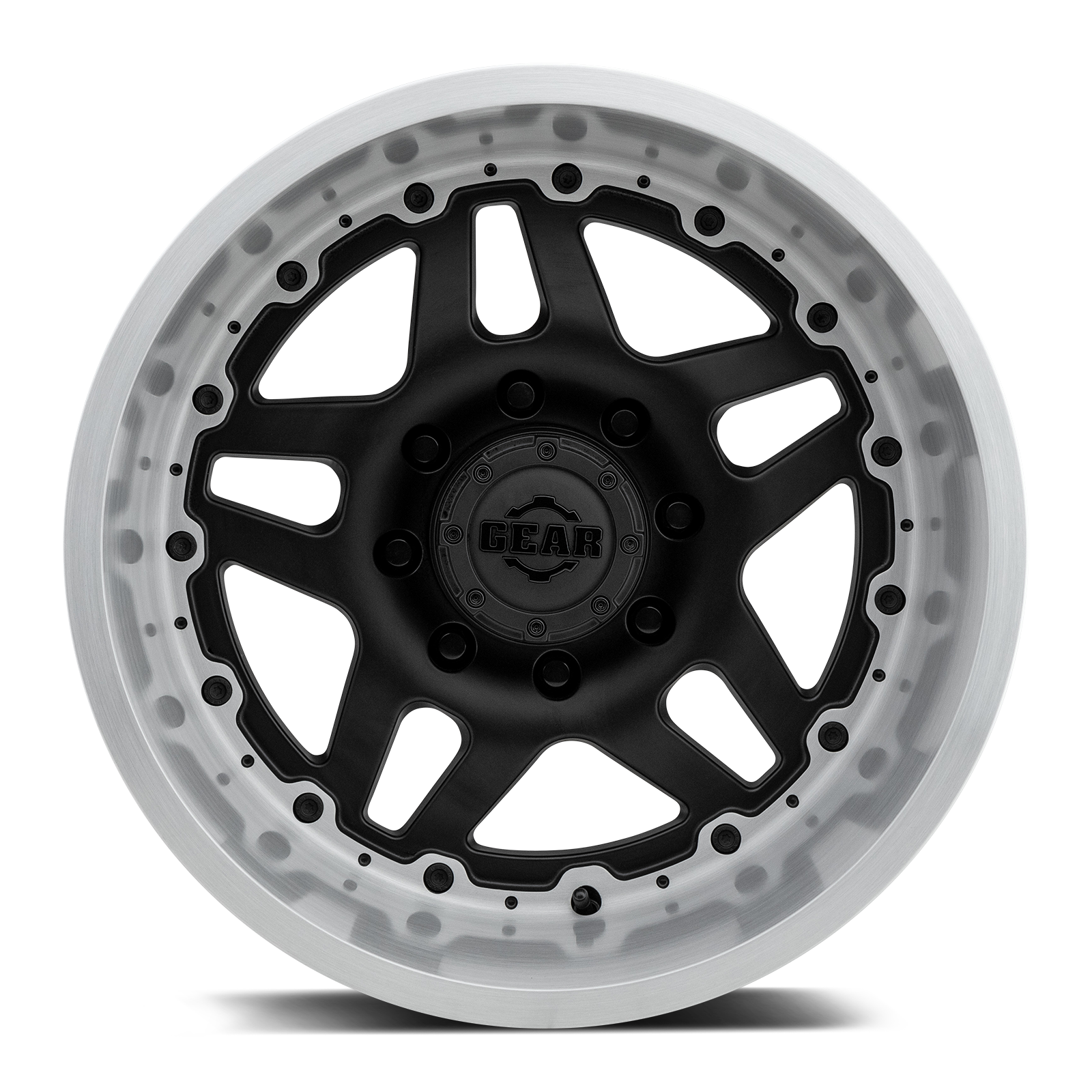

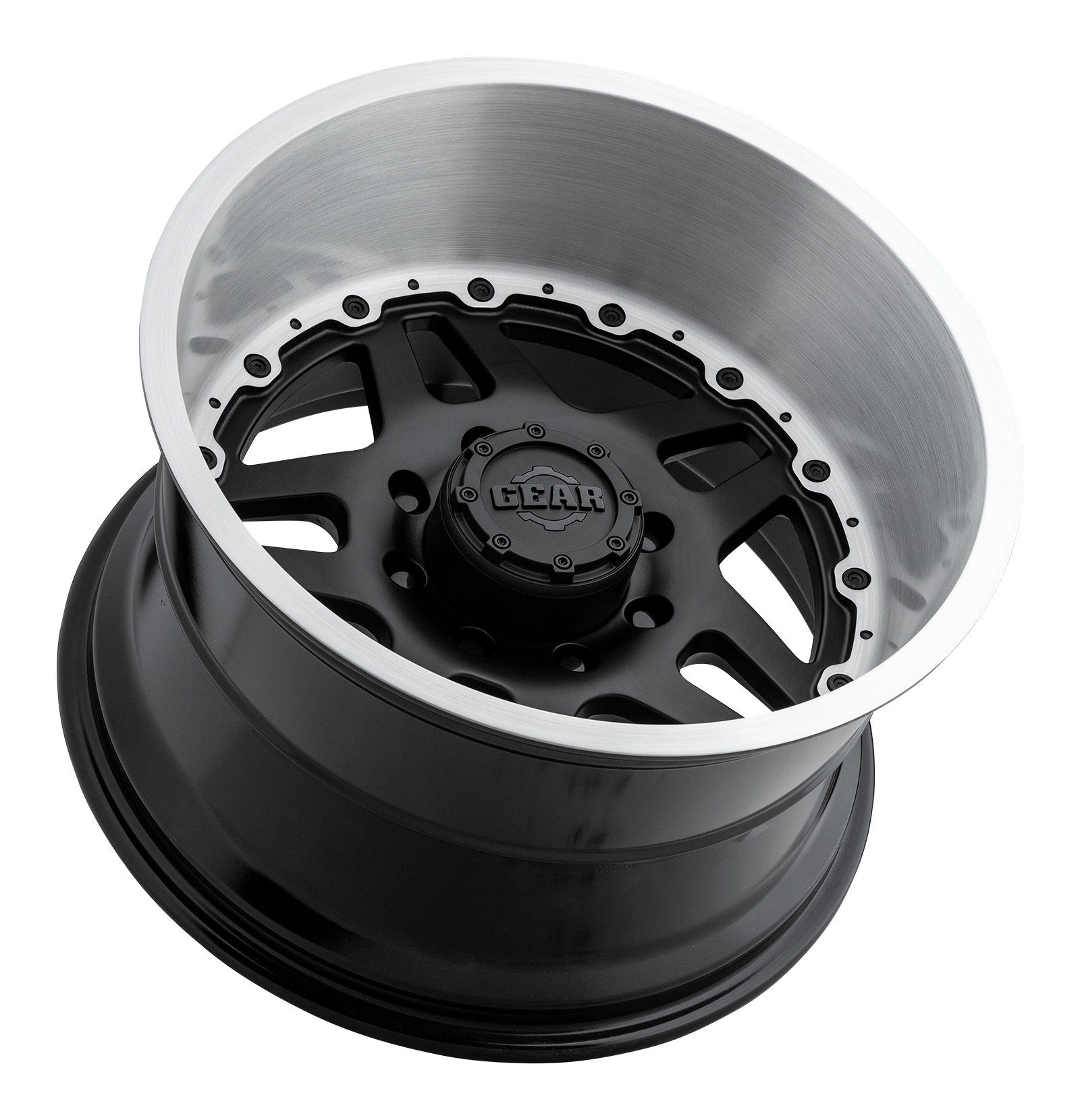

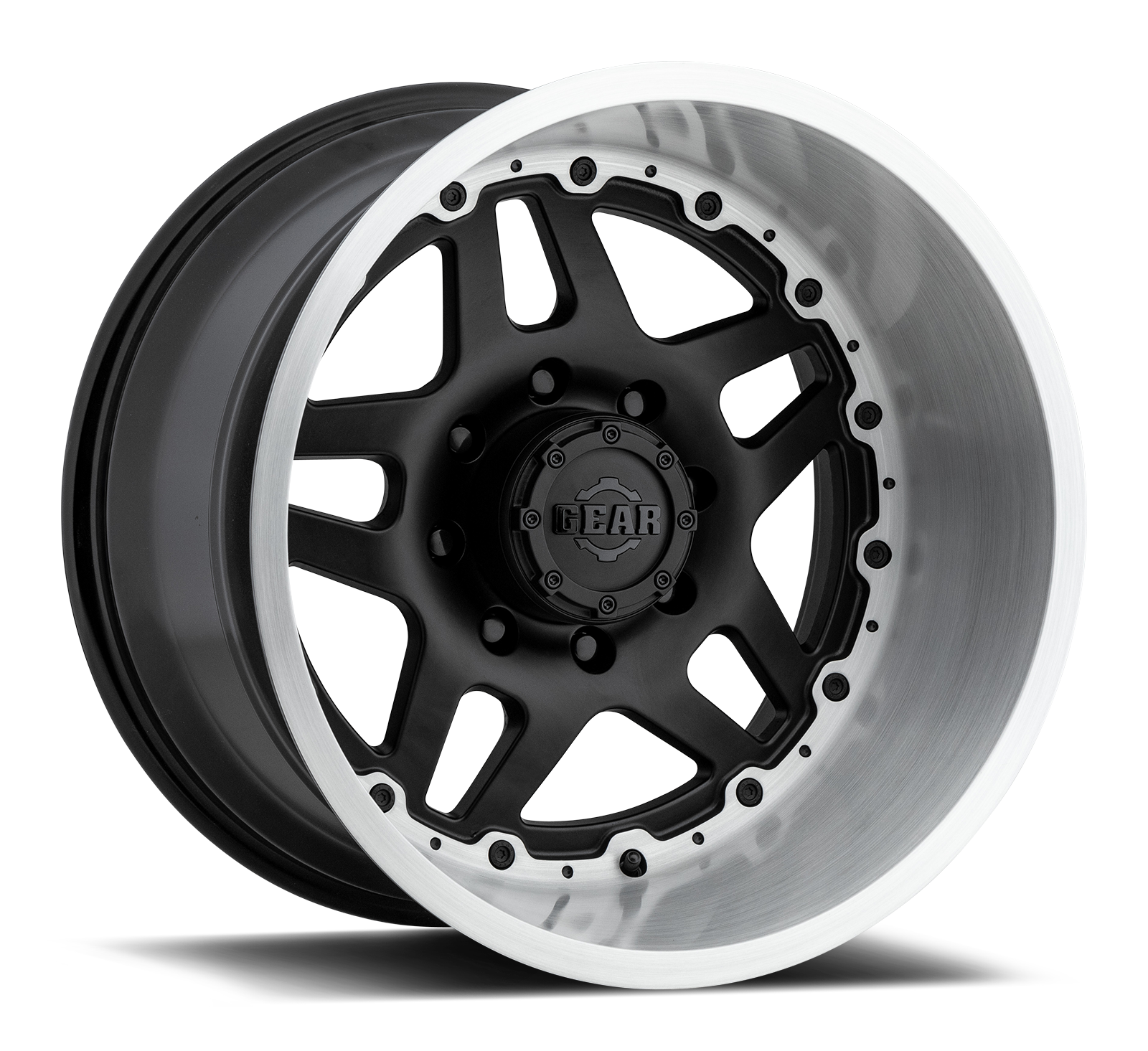

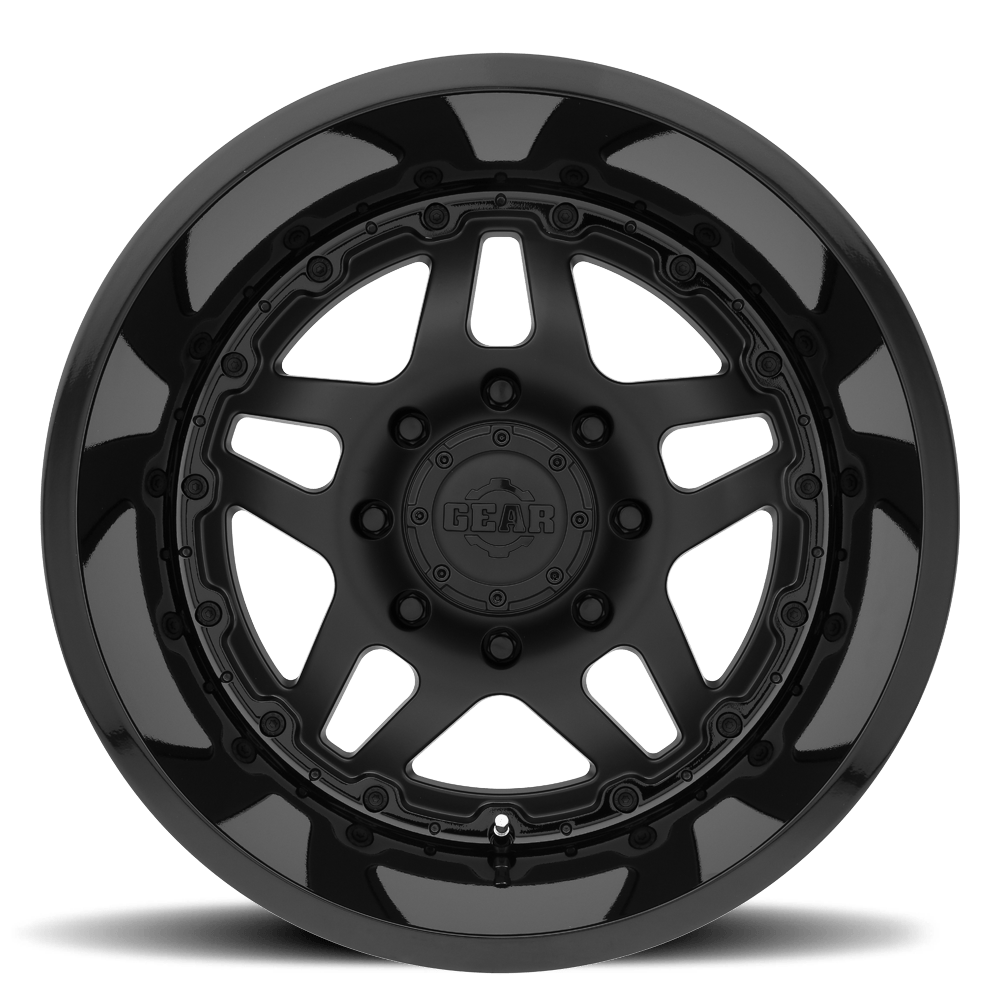

744 – Drivetrain
U.S. PATENT NO. D847,720 / U.S. PATENT NO. D828,798
DIAMETERS:
- 18"
- 20"
BOLT PATTERNS:
- 5x150
- 5x5.00
- 6x135
- 6x5.50
- 8x170
- 8x180
- 8x6.50
FINISHES:
-
(B)
-
(BB)
| Part Number | Wheel Size | Bolt Circle | Offset (mm) | Back Spacing | Hub Bore (mm) | Load Rating | Cap | Lip Width |
|---|---|---|---|---|---|---|---|---|
| 744B-8107325 | 18X10 | 5X5.00 | -25 | 4.52 | 78 | 2500 | CAP-5LP-M15 | 3.93 |
| 744B-8106325 | 18X10 | 6X135 | -25 | 4.52 | 87 | 2500 | CAP-6LP-M15 | 3.93 |
| 744B-8108425 | 18X10 | 6X5.50 | -25 | 4.52 | 108 | 2500 | CAP-6LP-M15 | 3.93 |
| 744B-8108125 | 18X10 | 8X6.50 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-M17 | 3.93 |
| 744B-8108725 | 18X10 | 8X170 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-M17 | 3.93 |
| 744B-2107325 | 20X10 | 5X5.00 | -25 | 4.52 | 78 | 2500 | CAP-5LP-M15 | 4.13 |
| 744B-2105025 | 20X10 | 5X150 | -25 | 4.52 | 110 | 2500 | CAP-6LP-M15 | 4.13 |
| 744B-2106325 | 20X10 | 6X135 | -25 | 4.52 | 87 | 2500 | CAP-6LP-M15 | 4.13 |
| 744B-2108425 | 20X10 | 6X5.50 | -25 | 4.52 | 108 | 2500 | CAP-6LP-M15 | 4.13 |
| 744B-2108125 | 20X10 | 8X6.50 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-M17 | 4.13 |
| 744B-2108725 | 20X10 | 8X170 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-M17 | 4.13 |
| 744B-2108925 | 20X10 | 8X180 | -25 | 4.52 | 124.3 | 3700 | CAP-8LP-M17 | 4.13 |
| 744BB-2107325 | 20X10 | 5X5.00 | -25 | 4.52 | 78 | 2500 | CAP-5LP-M15 | 4.13 |
| 744BB-2106325 | 20X10 | 6X135 | -25 | 4.52 | 87 | 2500 | CAP-6LP-M15 | 4.13 |
| 744BB-2108425 | 20X10 | 6X5.50 | -25 | 4.52 | 108 | 2500 | CAP-6LP-M15 | 4.13 |
| 744BB-2108125 | 20X10 | 8X6.50 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-M17 | 4.13 |
| 744BV-2107325 | 20X10 | 5X5.00 | -25 | 4.52 | 78 | 2500 | CAP-5LP-C15 | 4.13 |
| 744BV-2106325 | 20X10 | 6X135 | -25 | 4.52 | 87 | 2500 | CAP-6LP-C15 | 4.13 |
| 744BV-2108425 | 20X10 | 6X5.50 | -25 | 4.52 | 108 | 2500 | CAP-6LP-C15 | 4.13 |
| 744BV-2108125 | 20X10 | 8X6.50 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-C17 | 4.13 |
| 744BV-2108725 | 20X10 | 8X170 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-C17 | 4.13 |
| 744B-2126351 | 20X12 | 6X135 | -51 | 4.49 | 87 | 2500 | CAP-6LP-M15 | 6.17 |
| 744B-2128451 | 20X12 | 6X5.50 | -51 | 4.49 | 108 | 2500 | CAP-6LP-M15 | 6.17 |
| 744B-2128151 | 20X12 | 8X6.50 | -51 | 4.49 | 125.2 | 3700 | CAP-8LP-M17 | 6.17 |
| 744B-2128751 | 20X12 | 8X170 | -51 | 4.49 | 125.2 | 3700 | CAP-8LP-M17 | 6.17 |
| 744B-2128951 | 20X12 | 8X180 | -51 | 4.49 | 124.3 | 3700 | CAP-8LP-M17 | 6.17 |
| 744BB-2128151 | 20X12 | 8X6.50 | -51 | 4.49 | 125.2 | 3700 | CAP-8LP-M17 | 6.17 |
| 744BB-2128751 | 20X12 | 8X170 | -51 | 4.49 | 125.2 | 3700 | CAP-8LP-M17 | 6.17 |
| 744BV-2128151 | 20X12 | 8X6.50 | -51 | 4.49 | 125.2 | 3700 | CAP-8LP-C17 | 6.17 |
| 744BV-2128751 | 20X12 | 8X170 | -51 | 4.49 | 125.2 | 3700 | CAP-8LP-C17 | 6.17 |
| 744B-2096318 | 20X9 | 6X135 | 18 | 5.71 | 87 | 2500 | CAP-6LP-M15 | 2.13 |
| 744B-2098418 | 20X9 | 6X5.50 | 18 | 5.71 | 108 | 2500 | CAP-6LP-M15 | 2.13 |
| 744B-2098118 | 20X9 | 8X6.50 | 18 | 5.71 | 125.2 | 3700 | CAP-8LP-M17 | 2.13 |
| 744B-2098718 | 20X9 | 8X170 | 18 | 5.71 | 125.2 | 3700 | CAP-8LP-M17 | 2.13 |
| 744B-2098918 | 20X9 | 8X180 | 18 | 5.71 | 124.3 | 3700 | CAP-8LP-M17 | 2.13 |
| 744BB-2096318 | 20X9 | 6X135 | 18 | 5.71 | 87 | 2500 | CAP-6LP-M15 | 2.13 |
| 744BB-2098418 | 20X9 | 6X5.50 | 18 | 5.71 | 108 | 2500 | CAP-6LP-M15 | 2.13 |
| 744BB-2098118 | 20X9 | 8X6.50 | 18 | 5.71 | 125.2 | 3700 | CAP-8LP-M17 | 2.13 |
| 744BB-2098718 | 20X9 | 8X170 | 18 | 5.71 | 125.2 | 3700 | CAP-8LP-M17 | 2.13 |
| 744BV-2096318 | 20X9 | 6X135 | 18 | 5.71 | 87 | 2500 | CAP-6LP-C15 | 2.13 |
| 744BV-2098418 | 20X9 | 6X5.50 | 18 | 5.71 | 108 | 2500 | CAP-6LP-C15 | 2.13 |
| Part Number | Wheel Size | Bolt Circle | Offset (mm) | Back Spacing | Hub Bore (mm) | Load Rating | Cap | Lip Width |
|---|---|---|---|---|---|---|---|---|
| 744B-8107325 | 18X10 | 5X5.00 | -25 | 4.52 | 78 | 2500 | CAP-5LP-M15 | 3.93 |
| 744B-8106325 | 18X10 | 6X135 | -25 | 4.52 | 87 | 2500 | CAP-6LP-M15 | 3.93 |
| 744B-8108425 | 18X10 | 6X5.50 | -25 | 4.52 | 108 | 2500 | CAP-6LP-M15 | 3.93 |
| 744B-8108125 | 18X10 | 8X6.50 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-M17 | 3.93 |
| 744B-8108725 | 18X10 | 8X170 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-M17 | 3.93 |
| Part Number | Wheel Size | Bolt Circle | Offset (mm) | Back Spacing | Hub Bore (mm) | Load Rating | Cap | Lip Width |
|---|---|---|---|---|---|---|---|---|
| 744B-2096318 | 20X9 | 6X135 | 18 | 5.71 | 87 | 2500 | CAP-6LP-M15 | 2.13 |
| 744B-2098418 | 20X9 | 6X5.50 | 18 | 5.71 | 108 | 2500 | CAP-6LP-M15 | 2.13 |
| 744B-2098118 | 20X9 | 8X6.50 | 18 | 5.71 | 125.2 | 3700 | CAP-8LP-M17 | 2.13 |
| 744B-2098718 | 20X9 | 8X170 | 18 | 5.71 | 125.2 | 3700 | CAP-8LP-M17 | 2.13 |
| 744B-2098918 | 20X9 | 8X180 | 18 | 5.71 | 124.3 | 3700 | CAP-8LP-M17 | 2.13 |
| 744BB-2096318 | 20X9 | 6X135 | 18 | 5.71 | 87 | 2500 | CAP-6LP-M15 | 2.13 |
| 744BB-2098418 | 20X9 | 6X5.50 | 18 | 5.71 | 108 | 2500 | CAP-6LP-M15 | 2.13 |
| 744BB-2098118 | 20X9 | 8X6.50 | 18 | 5.71 | 125.2 | 3700 | CAP-8LP-M17 | 2.13 |
| 744BB-2098718 | 20X9 | 8X170 | 18 | 5.71 | 125.2 | 3700 | CAP-8LP-M17 | 2.13 |
| 744BV-2096318 | 20X9 | 6X135 | 18 | 5.71 | 87 | 2500 | CAP-6LP-C15 | 2.13 |
| 744BV-2098418 | 20X9 | 6X5.50 | 18 | 5.71 | 108 | 2500 | CAP-6LP-C15 | 2.13 |
| 744B-2107325 | 20X10 | 5X5.00 | -25 | 4.52 | 78 | 2500 | CAP-5LP-M15 | 4.13 |
| 744B-2105025 | 20X10 | 5X150 | -25 | 4.52 | 110 | 2500 | CAP-6LP-M15 | 4.13 |
| 744B-2106325 | 20X10 | 6X135 | -25 | 4.52 | 87 | 2500 | CAP-6LP-M15 | 4.13 |
| 744B-2108425 | 20X10 | 6X5.50 | -25 | 4.52 | 108 | 2500 | CAP-6LP-M15 | 4.13 |
| 744B-2108125 | 20X10 | 8X6.50 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-M17 | 4.13 |
| 744B-2108725 | 20X10 | 8X170 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-M17 | 4.13 |
| 744B-2108925 | 20X10 | 8X180 | -25 | 4.52 | 124.3 | 3700 | CAP-8LP-M17 | 4.13 |
| 744BB-2107325 | 20X10 | 5X5.00 | -25 | 4.52 | 78 | 2500 | CAP-5LP-M15 | 4.13 |
| 744BB-2106325 | 20X10 | 6X135 | -25 | 4.52 | 87 | 2500 | CAP-6LP-M15 | 4.13 |
| 744BB-2108425 | 20X10 | 6X5.50 | -25 | 4.52 | 108 | 2500 | CAP-6LP-M15 | 4.13 |
| 744BB-2108125 | 20X10 | 8X6.50 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-M17 | 4.13 |
| 744BV-2107325 | 20X10 | 5X5.00 | -25 | 4.52 | 78 | 2500 | CAP-5LP-C15 | 4.13 |
| 744BV-2106325 | 20X10 | 6X135 | -25 | 4.52 | 87 | 2500 | CAP-6LP-C15 | 4.13 |
| 744BV-2108425 | 20X10 | 6X5.50 | -25 | 4.52 | 108 | 2500 | CAP-6LP-C15 | 4.13 |
| 744BV-2108125 | 20X10 | 8X6.50 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-C17 | 4.13 |
| 744BV-2108725 | 20X10 | 8X170 | -25 | 4.52 | 125.2 | 3700 | CAP-8LP-C17 | 4.13 |
| 744B-2126351 | 20X12 | 6X135 | -51 | 4.49 | 87 | 2500 | CAP-6LP-M15 | 6.17 |
| 744B-2128451 | 20X12 | 6X5.50 | -51 | 4.49 | 108 | 2500 | CAP-6LP-M15 | 6.17 |
| 744B-2128151 | 20X12 | 8X6.50 | -51 | 4.49 | 125.2 | 3700 | CAP-8LP-M17 | 6.17 |
| 744B-2128751 | 20X12 | 8X170 | -51 | 4.49 | 125.2 | 3700 | CAP-8LP-M17 | 6.17 |
| 744B-2128951 | 20X12 | 8X180 | -51 | 4.49 | 124.3 | 3700 | CAP-8LP-M17 | 6.17 |
| 744BB-2128151 | 20X12 | 8X6.50 | -51 | 4.49 | 125.2 | 3700 | CAP-8LP-M17 | 6.17 |
| 744BB-2128751 | 20X12 | 8X170 | -51 | 4.49 | 125.2 | 3700 | CAP-8LP-M17 | 6.17 |
| 744BV-2128151 | 20X12 | 8X6.50 | -51 | 4.49 | 125.2 | 3700 | CAP-8LP-C17 | 6.17 |
| 744BV-2128751 | 20X12 | 8X170 | -51 | 4.49 | 125.2 | 3700 | CAP-8LP-C17 | 6.17 |
