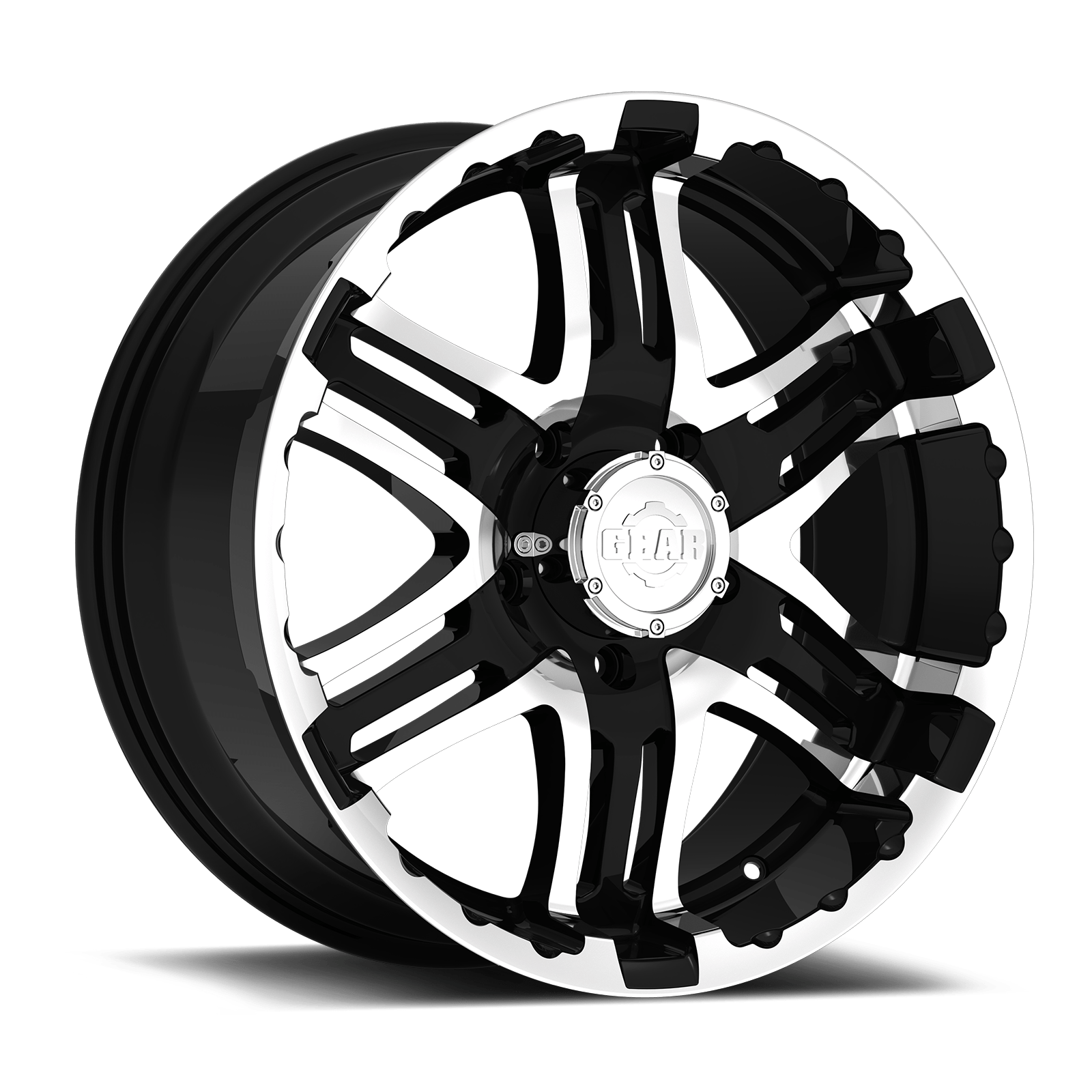

MIRROR MACHINED FACE WITH GLOSS BLACK ACCENTS (M)
713 – DOUBLE PUMP
U.S. PATENT NO. D707,172
BOLT PATTERNS:
- 5x135
- 5x150
- 5x4.50
- 5x4.75
- 5x5.00
- 6x135
- 6x5.50
- 8x6.50
| Part Number | Wheel Size | Bolt Circle | Offset (mm) | Back Spacing | Hub Bore | Load Rating | Cap | Lip Width |
|---|
| 713MB-6806500 | 16X8 | 5X4.50 | 0 | 4.5 | 83.82 | 2300 | CAP-5L-C14 | N/A |
| 713MB-6806100 | 16X8 | 5X4.75 | 0 | 4.5 | 83.82 | 2300 | CAP-5L-C14 | N/A |
| 713MB-6808100 | 16X8 | 8X6.50 | 0 | 4.5 | 130.18 | 3200 | CAP-8L-C14 | N/A |
| 713MB-6808400 | 16X8 | 6X5.50 | 0 | 4.5 | 107.95 | 2300 | CAP-6L-C14 | N/A |
| 713MB-7908510 | 17X9 | 5X5.50 | 10 | 5.39 | 107.95 | 2300 | CAP-6LP-C14 | N/A |
| 713MB-7908110 | 17X9 | 8X6.50 | 10 | 5.39 | 130.18 | 3200 | CAP-8L-C14 | N/A |
| 713MB-7906330 | 17X9 | 6X135 | 30 | 6.18 | 87 | 2300 | CAP-6LF-C14 | N/A |
| 713MB-7908410 | 17X9 | 6X5.50 | 10 | 5.39 | 107.95 | 2300 | CAP-6L-C14 | N/A |
| 713MB-7908430 | 17X9 | 6X5.50 | 30 | 6.18 | 107.95 | 2300 | CAP-6L-C14 | N/A |
| 713MB-7907310 | 17X9 | 5X5.00 | 10 | 5.39 | 83.82 | 2300 | CAP-5L-C14 | N/A |
| 713MB-8905030 | 18X9 | 5X150 | 30 | 6.18 | 110 | 3200 | CAP-6L-C14 | N/A |
| 713MB-8908410 | 18X9 | 6X5.50 | 10 | 5.39 | 107.95 | 2300 | CAP-6L-C14 | N/A |
| 713MB-8908430 | 18X9 | 6X5.50 | 30 | 6.18 | 107.95 | 2300 | CAP-6L-C14 | N/A |
| 713MB-2095310 | 20X9 | 5X135 | 10 | 5.39 | 87 | 2300 | CAP-5L-C14 | N/A |
| 713MB-2098510 | 20X9 | 5X5.50 | 10 | 5.39 | 107.95 | 2300 | CAP-5L-C14 | N/A |
| 713MB-2096330 | 20X9 | 6X135 | 30 | 6.18 | 87 | 2300 | CAP-6LF-C14 | N/A |
| 713MB-2095035 | 20X9 | 5X150 | 35 | 6.38 | 110 | 3200 | CAP-6L-C14 | N/A |
| 713MB-2098410 | 20X9 | 6X5.50 | 10 | 5.39 | 107.95 | 2300 | CAP-6L-C14 | N/A |
| 713MB-2098430 | 20X9 | 6X5.50 | 30 | 6.18 | 107.95 | 2300 | CAP-6L-C14 | N/A |
| Part Number | Wheel Size | Bolt Circle | Offset (mm) | Back Spacing | Hub Bore | Load Rating | Cap | Lip Width |
|---|
| 713MB-6806500 | 16X8 | 5X4.50 | 0 | 4.5 | 83.82 | 2300 | CAP-5L-C14 | N/A |
| 713MB-6806100 | 16X8 | 5X4.75 | 0 | 4.5 | 83.82 | 2300 | CAP-5L-C14 | N/A |
| 713MB-6808100 | 16X8 | 8X6.50 | 0 | 4.5 | 130.18 | 3200 | CAP-8L-C14 | N/A |
| 713MB-6808400 | 16X8 | 6X5.50 | 0 | 4.5 | 107.95 | 2300 | CAP-6L-C14 | N/A |
| Part Number | Wheel Size | Bolt Circle | Offset (mm) | Back Spacing | Hub Bore | Load Rating | Cap | Lip Width |
|---|
| 713MB-7908510 | 17X9 | 5X5.50 | 10 | 5.39 | 107.95 | 2300 | CAP-6LP-C14 | N/A |
| 713MB-7908110 | 17X9 | 8X6.50 | 10 | 5.39 | 130.18 | 3200 | CAP-8L-C14 | N/A |
| 713MB-7906330 | 17X9 | 6X135 | 30 | 6.18 | 87 | 2300 | CAP-6LF-C14 | N/A |
| 713MB-7908410 | 17X9 | 6X5.50 | 10 | 5.39 | 107.95 | 2300 | CAP-6L-C14 | N/A |
| 713MB-7908430 | 17X9 | 6X5.50 | 30 | 6.18 | 107.95 | 2300 | CAP-6L-C14 | N/A |
| 713MB-7907310 | 17X9 | 5X5.00 | 10 | 5.39 | 83.82 | 2300 | CAP-5L-C14 | N/A |
| Part Number | Wheel Size | Bolt Circle | Offset (mm) | Back Spacing | Hub Bore | Load Rating | Cap | Lip Width |
|---|
| 713MB-8905030 | 18X9 | 5X150 | 30 | 6.18 | 110 | 3200 | CAP-6L-C14 | N/A |
| 713MB-8908410 | 18X9 | 6X5.50 | 10 | 5.39 | 107.95 | 2300 | CAP-6L-C14 | N/A |
| 713MB-8908430 | 18X9 | 6X5.50 | 30 | 6.18 | 107.95 | 2300 | CAP-6L-C14 | N/A |
| Part Number | Wheel Size | Bolt Circle | Offset (mm) | Back Spacing | Hub Bore | Load Rating | Cap | Lip Width |
|---|
| 713MB-2095310 | 20X9 | 5X135 | 10 | 5.39 | 87 | 2300 | CAP-5L-C14 | N/A |
| 713MB-2098510 | 20X9 | 5X5.50 | 10 | 5.39 | 107.95 | 2300 | CAP-5L-C14 | N/A |
| 713MB-2096330 | 20X9 | 6X135 | 30 | 6.18 | 87 | 2300 | CAP-6LF-C14 | N/A |
| 713MB-2095035 | 20X9 | 5X150 | 35 | 6.38 | 110 | 3200 | CAP-6L-C14 | N/A |
| 713MB-2098410 | 20X9 | 6X5.50 | 10 | 5.39 | 107.95 | 2300 | CAP-6L-C14 | N/A |
| 713MB-2098430 | 20X9 | 6X5.50 | 30 | 6.18 | 107.95 | 2300 | CAP-6L-C14 | N/A |
Center Caps
