713 – DOUBLE PUMP - Gear Off Road
(M)

713 – DOUBLE PUMP

U.S. PATENT NO. D707,172

DIAMETERS:
  • 16"
  • 17"
  • 18"
  • 20"
BOLT PATTERNS:
  • 5x135
  • 5x150
  • 5x4.50
  • 5x4.75
  • 6x135
  • 6x5.50
  • 8x6.50
FINISHES:
  • 26
    (M)
KEY FEATURES:

• Exceptionally Strong A356 Aluminum Alloy
• T6 Heat Treated for Maximum Strength
• Dual Windowed 6 Spoke Design with Gloss Black Accents
• Bolt-on Center Cap with Gear Off Road Logo
• Unique Notched Lip
• Available in Premium Finish with Gloss Clear Coat for Added Protection
• TPMS Compatible
• Industry-Leading 2300 lb. to 3200 lb. Load Ratings
• Lifetime Structural Warranty & 1 Year Finish Warranty

OVERVIEW:

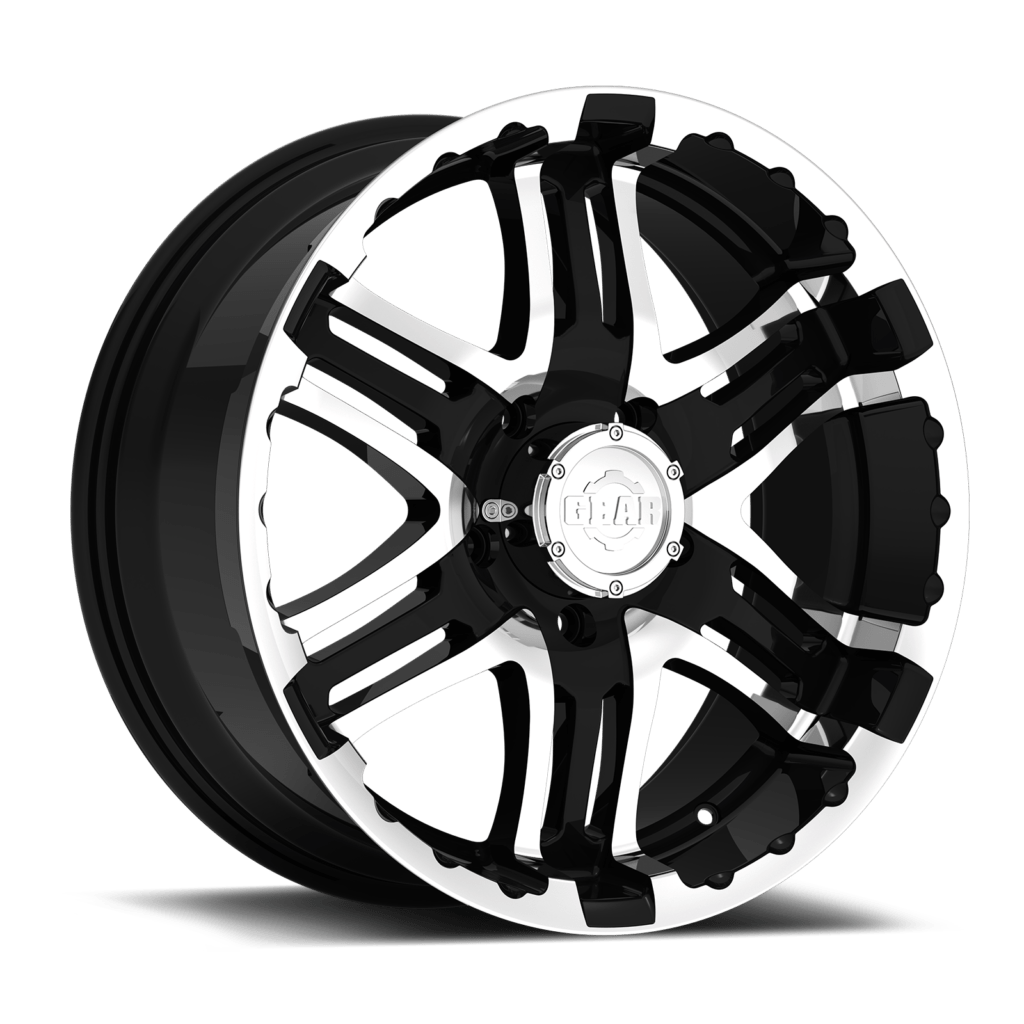

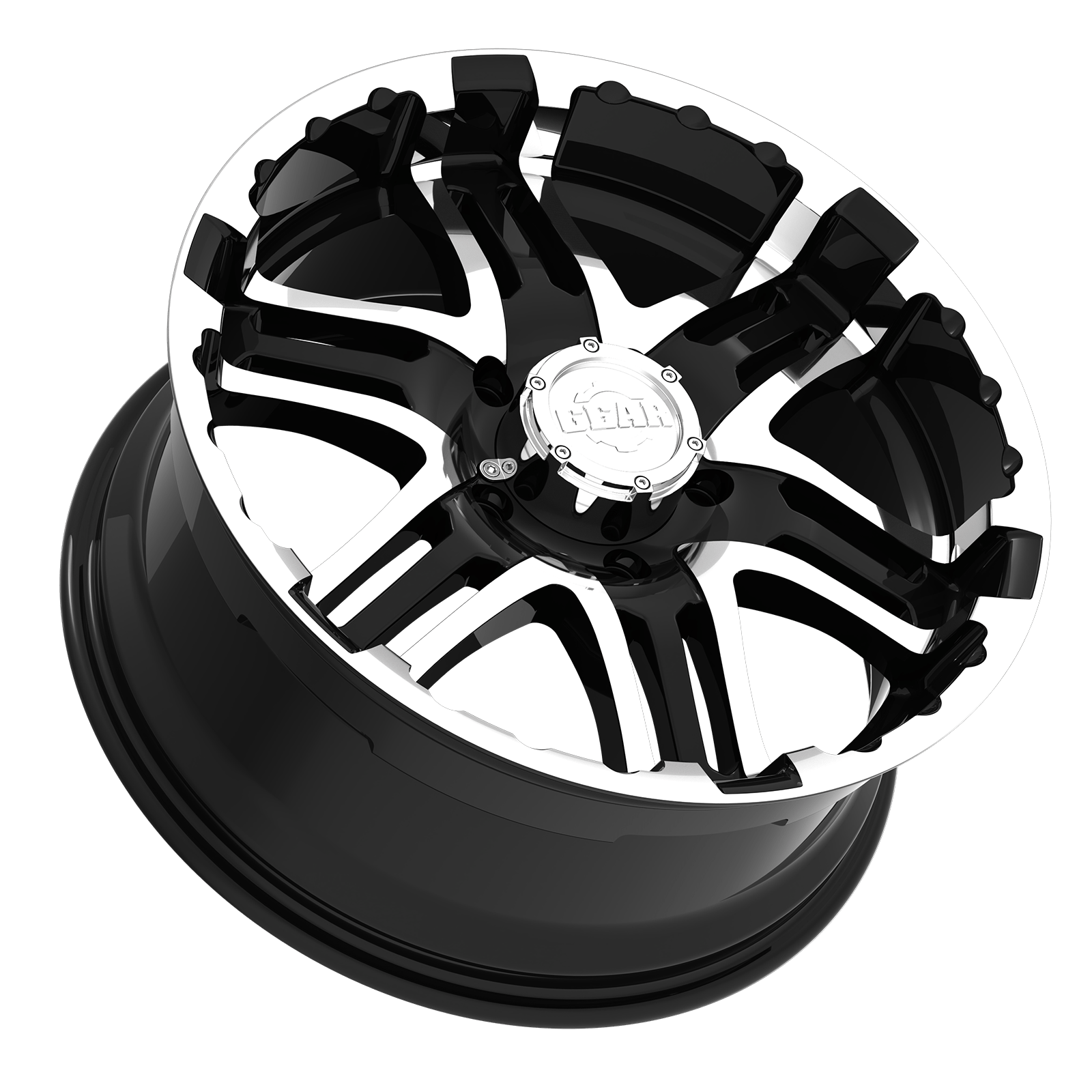

The 713 is a strong dual windowed 6 spoke design, having a mirror machined face highlighted by gloss black accents. Unique to the Double Pump is its notched lip, adding to its angular and industrial look. The Double Pump is made from A356 Aluminum Alloy and covered in our Gloss Clear Coat for maximum strength and protection.

Part NumberWheel SizeBolt CircleOffset (mm)Back SpacingHub BoreLoad RatingCapLip Width
713MB-680650016X85X4.5004.583.822300CAP-5L-C14N/A
713MB-680610016X85X4.7504.583.822300CAP-5L-C14N/A
713MB-680810016X88X6.5004.5130.183200CAP-8L-C14N/A
713MB-680840016X86X5.5004.5107.952300CAP-6L-C14N/A
713MB-790851017X95X5.50105.39107.952300CAP-6LP-C14N/A
713MB-790811017X98X6.50105.39130.183200CAP-8L-C14N/A
713MB-790633017X96X135306.18872300CAP-6LF-C14N/A
713MB-790841017X96X5.50105.39107.952300CAP-6L-C14N/A
713MB-790843017X96X5.50306.18107.952300CAP-6L-C14N/A
713MB-890503018X95X150306.181103200CAP-6L-C14N/A
713MB-890841018X96X5.50105.39107.952300CAP-6L-C14N/A
713MB-890843018X96X5.50306.18107.952300CAP-6L-C14N/A
713MB-209531020X95X135105.39872300CAP-5L-C14N/A
713MB-209851020X95X5.50105.39107.952300CAP-5L-C14N/A
713MB-209633020X96X135306.18872300CAP-6LF-C14N/A
713MB-209503520X95X150356.381103200CAP-6L-C14N/A
713MB-209841020X96X5.50105.39107.952300CAP-6L-C14N/A
713MB-209843020X96X5.50306.18107.952300CAP-6L-C14N/A
Part NumberWheel SizeBolt CircleOffset (mm)Back SpacingHub BoreLoad RatingCapLip Width
713MB-680650016X85X4.5004.583.822300CAP-5L-C14N/A
713MB-680610016X85X4.7504.583.822300CAP-5L-C14N/A
713MB-680810016X88X6.5004.5130.183200CAP-8L-C14N/A
713MB-680840016X86X5.5004.5107.952300CAP-6L-C14N/A
Part NumberWheel SizeBolt CircleOffset (mm)Back SpacingHub BoreLoad RatingCapLip Width
713MB-790851017X95X5.50105.39107.952300CAP-6LP-C14N/A
713MB-790811017X98X6.50105.39130.183200CAP-8L-C14N/A
713MB-790633017X96X135306.18872300CAP-6LF-C14N/A
713MB-790841017X96X5.50105.39107.952300CAP-6L-C14N/A
713MB-790843017X96X5.50306.18107.952300CAP-6L-C14N/A
Part NumberWheel SizeBolt CircleOffset (mm)Back SpacingHub BoreLoad RatingCapLip Width
713MB-890503018X95X150306.181103200CAP-6L-C14N/A
713MB-890841018X96X5.50105.39107.952300CAP-6L-C14N/A
713MB-890843018X96X5.50306.18107.952300CAP-6L-C14N/A
Part NumberWheel SizeBolt CircleOffset (mm)Back SpacingHub BoreLoad RatingCapLip Width
713MB-209531020X95X135105.39872300CAP-5L-C14N/A
713MB-209851020X95X5.50105.39107.952300CAP-5L-C14N/A
713MB-209633020X96X135306.18872300CAP-6LF-C14N/A
713MB-209503520X95X150356.381103200CAP-6L-C14N/A
713MB-209841020X96X5.50105.39107.952300CAP-6L-C14N/A
713MB-209843020X96X5.50306.18107.952300CAP-6L-C14N/A
